ABB F2045 INS PP FERRULE 6, 16 MM2,

Manufacturer: Thomas & Betts | Catalog # F2045 | North Coast Part # 1175
$249.46/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

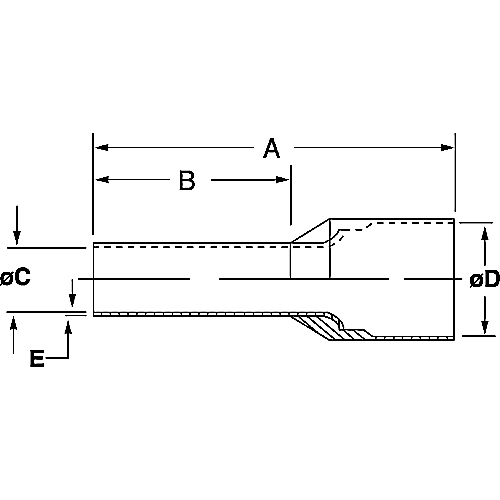

Polypropylene-Insulated Ferrule, Total Length .906 Inches/23mm, Pin Length .472 Inches/12mm, Pin Diameter .236 Inches/6mm, Base Diameter .346 Inches/8.8mm, Wire Range 6 AWG/16.00mm2, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
6 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
12 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335490
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363151159
Product UPC
78621033549

Dimensions

Overall Length
0.906 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
