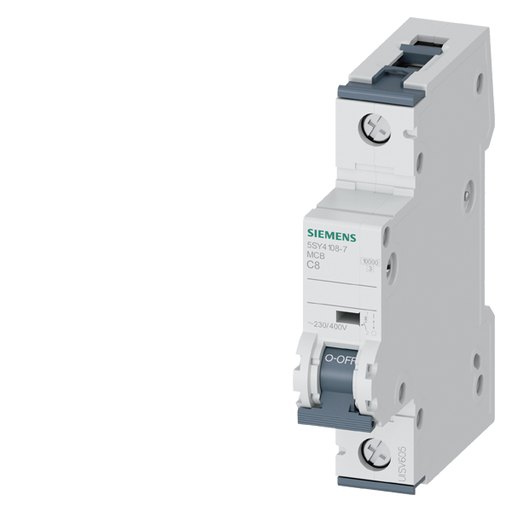

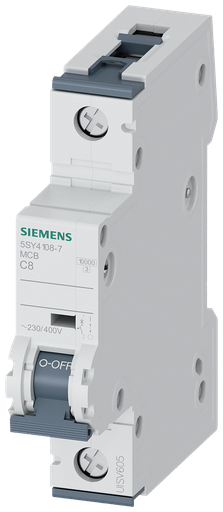

Siemens 5SY4108-7 8 Amp C Curve 1-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4108-7 | North Coast Part # 1179441
$52.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SUPPLEMENTARY PROTECTOR,1P,8A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 1 Pole, 8 Amps, 277 VAC, Trip Characteristic Curve C, 18mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
8 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
8 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
1 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
CSA,E2186,UL
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554862309
Class
C
GTiN
00754554862309
Product UPC
75455486230
Weight
0.350 lb

Dimensions

Height
3-1/4 Inch
Length
3.8 Inch
Width
0.800 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.016 kg
Green End-of-Life CO2
0.162 kg
Green Manufacturing CO2
0.656 kg
Green Total CO2
6.669 kg
Green Transport-to-DC CO2
0.118 kg
Green Use-Phase CO2
5.717 kg
