Hubbell HBL5369-C 20A 125V INSULGRIP Black Nylon Connector Body

Manufacturer: Hubbell / Kellems | Catalog # HBL5369C | North Coast Part # 118079
$78.92/ea
ea
Log in or register to view your price, purchase history, and more!
19 available

For Pick Up

at Auburn Closes 4:00pm PT
19 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Current
20 Amp
Horsepower
1 hp
Material
Composite
NEMA
5-20R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C without Impact
Type
Standard
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585174259
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585174259
Product Series
Insulgrip
Product UPC
78358517425
Weight
0.15 lb

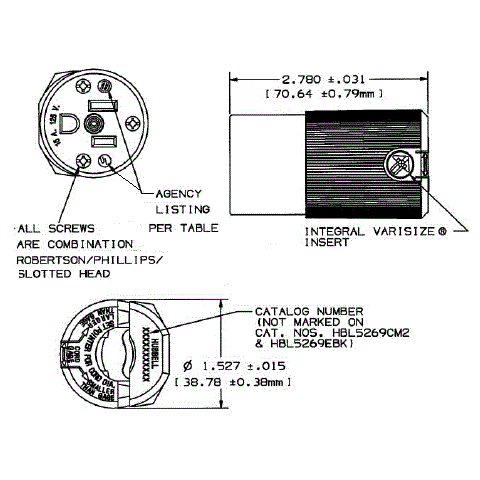

Dimensions

Height
1.53 Inch
Length
2.78 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Fast lead assembly screws
  • Beveled housing prevents snagging
