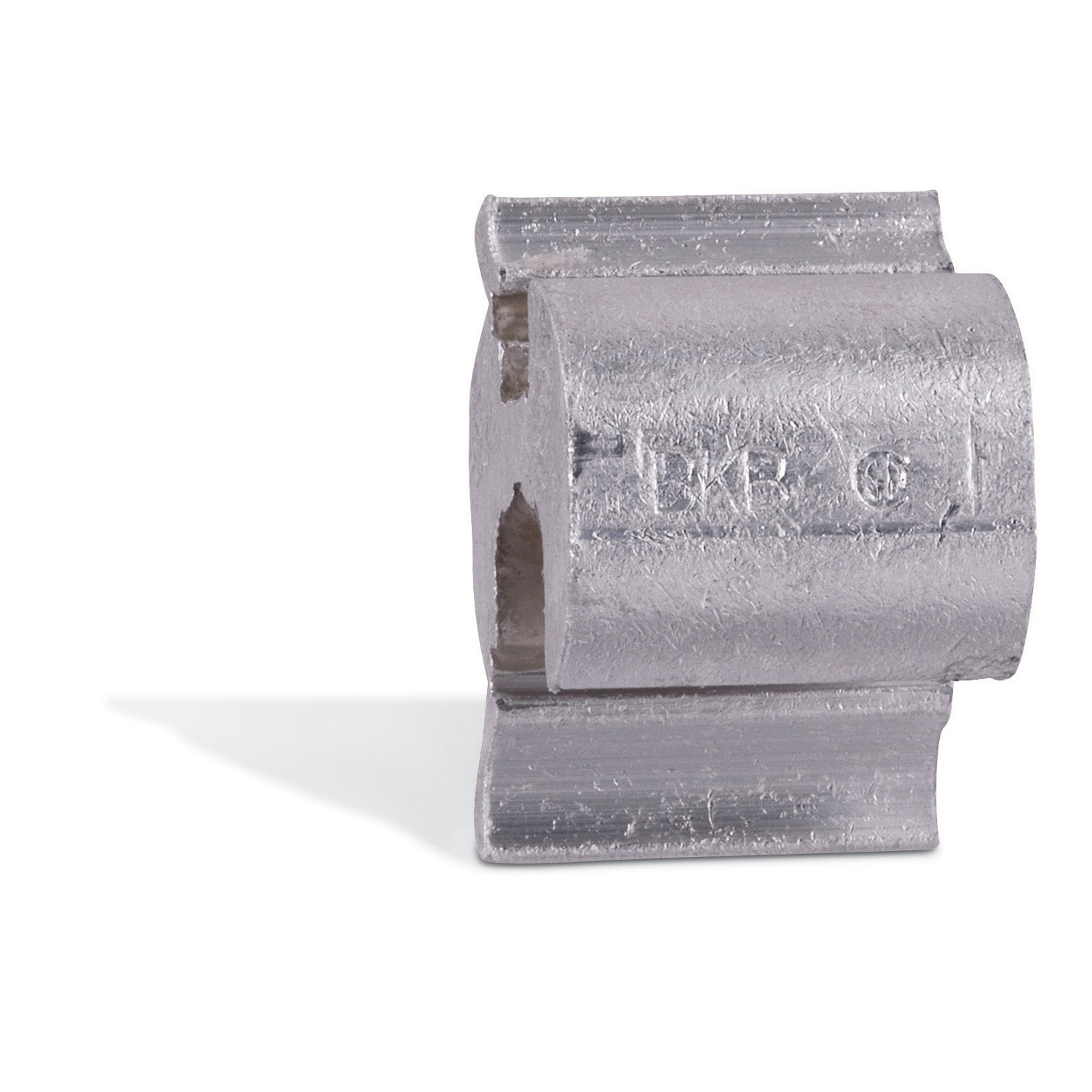

Blackburn WR9 Compression Connector

Manufacturer: Thomas & Betts / Blackburn | Catalog # WR9 | North Coast Part # 119068
$2.34/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page MDM Safety Data Sheet
Aluminum Wide Range H-Type Compression Connector Main: 3-6 ACSR, 2-6 Str., 1-4 Sol.,Tap: 8-14 Str., 8-14 Sol., Die: 5/8 OR BG. 13/16 inch.

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 13/16 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 3-6 ACSR or 2-6 STR or 1-4 SOL AWG ; Tap: 8-14 STR or 8-14 SOL AWGp: 8-14 STR AWG ; 8-14 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100354
Finish
Tin Plated
GTiN
00783786100354
Product UPC
78378610035
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
13/16 Inch
