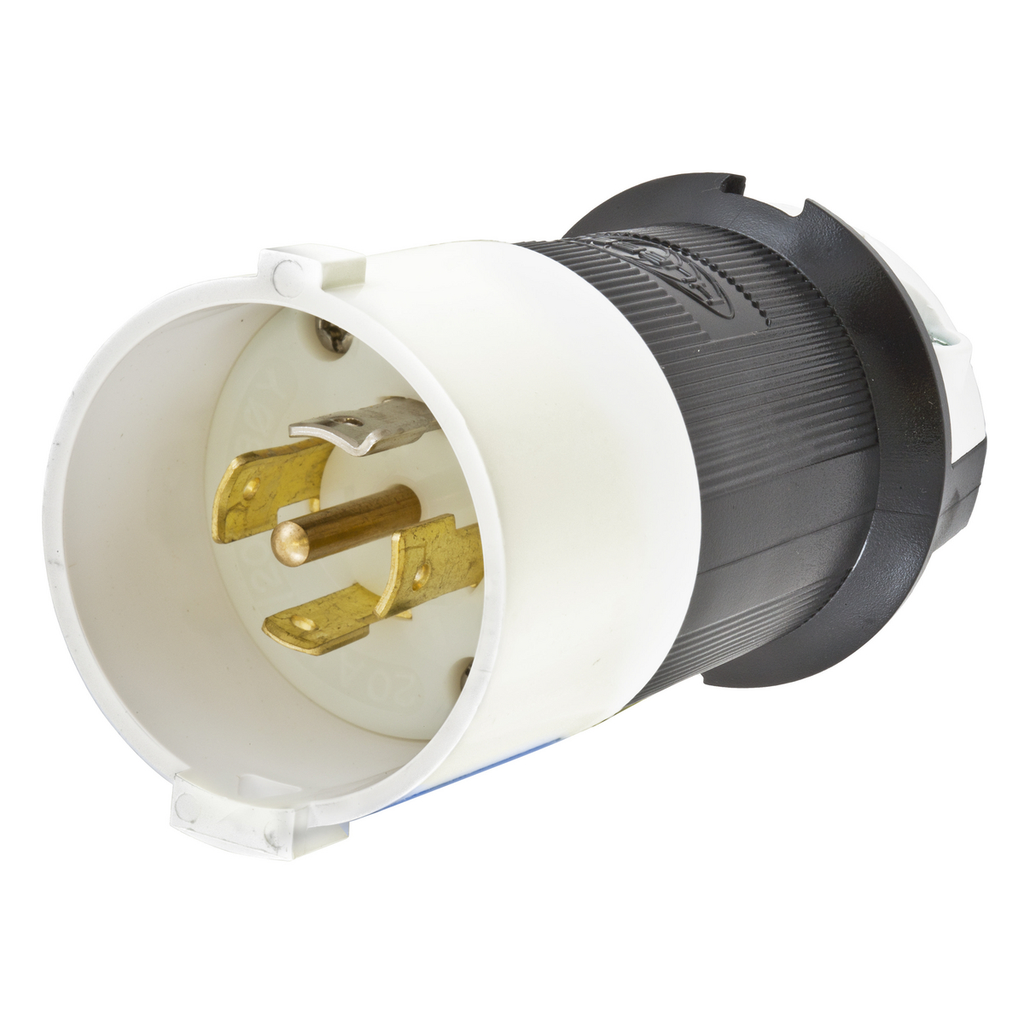

Product image for HCI HBL2511S LKG S/SHRD PLUG, 20A 1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HCI HBL2511S LKG S/SHRD PLUG, 20A 1

Manufacturer: Hubbell / Kellems | Catalog # HBL2511S | North Coast Part # 121075
$132.66/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Safety-Shroud®, Male Plug, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20P, Screw Terminal, Black and White Nylon Body, White PBT Shroud.

Technical Information

Amperage
20 Amp
Applications
Power Connection
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L21-20P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
2.33 in x 2.33 in x 4.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Male, Shrouded
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585235028
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585235028
Product UPC
78358523502
Weight
0.45 lb

Dimensions

Height
4.21 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Safety-Shroud
