ABB RB47PT INS VINYL PIN TERMINAL N

Manufacturer: Thomas & Betts | Catalog # RB47PT | North Coast Part # 123060
$123.85/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

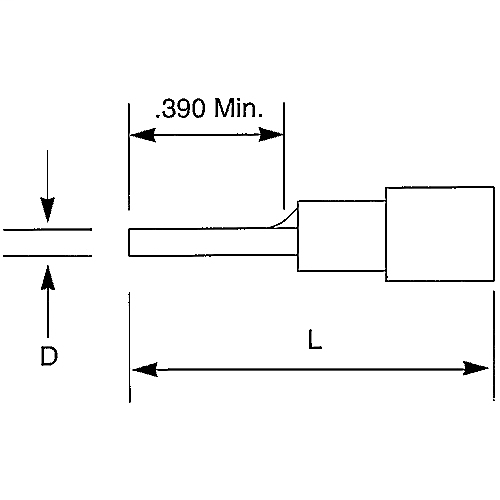

Vinyl Insulated Pin Terminal, Length .87 Inches, Pin Length .390 Inches, Diameter .075 Inches, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
16-14 AWG
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
300 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210034195
Color
Blue
Finish
Tin Plated
GTiN
05414363933809
Product UPC
78621003419

Dimensions

Length
0.87 Inch
Features
  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. (I.e. 12050 tool and application dies).
