ABB RBS14-8FLX HEAT-SHR LKG FORK TE

Manufacturer: Thomas & Betts | Catalog # RBS14-8FLX | North Coast Part # 123064
$428.91/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

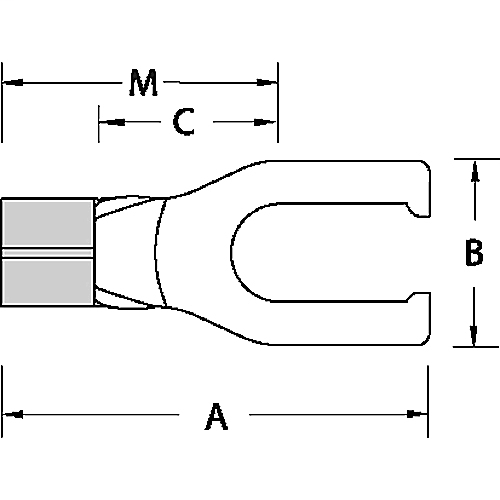

Heat Shrinkable Locking Fork Terminal, Length 1.350 Inches, Width .29 Inches, Maximum Insulation .200, Bolt Hole #8, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
16-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Standard
UL E66716,UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RAS
Type
Heat Shrinkable, Locking
Voltage
600 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210873640
Color
Blue
Finish
Tin Plated
GTiN
05414363933618
Product UPC
78621087364

Dimensions

Height
2-3/4 Inch
Length
1.35 Inch
Width
1.3 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Not available on Mylar Tape.
Certifications
  • CSA
  • UL
