3M Electrical SDR-0-9 Number 0 to 9 Wire Marker Tape Refill Roll

Manufacturer: 3M | Catalog # 7000031760 | North Coast Part # 123585
$8.95/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

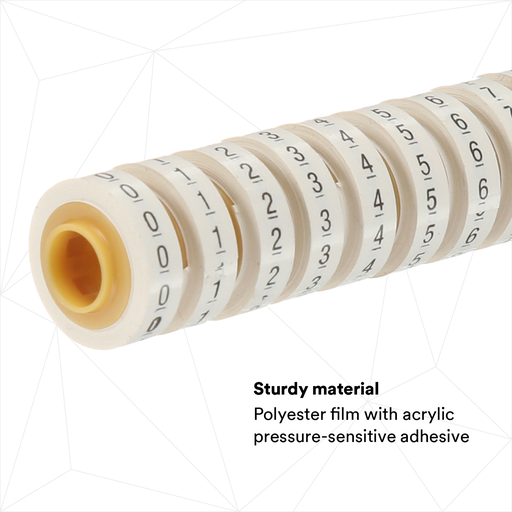

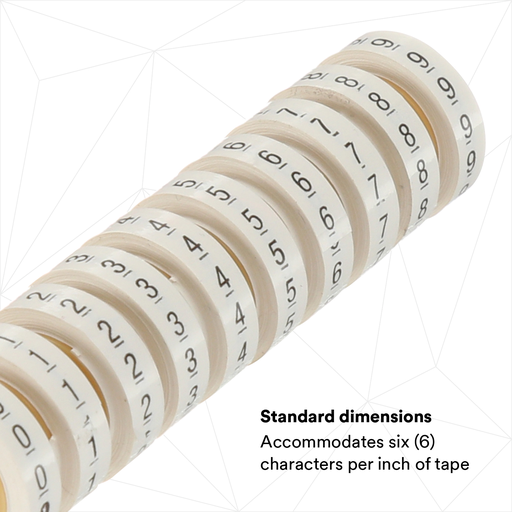

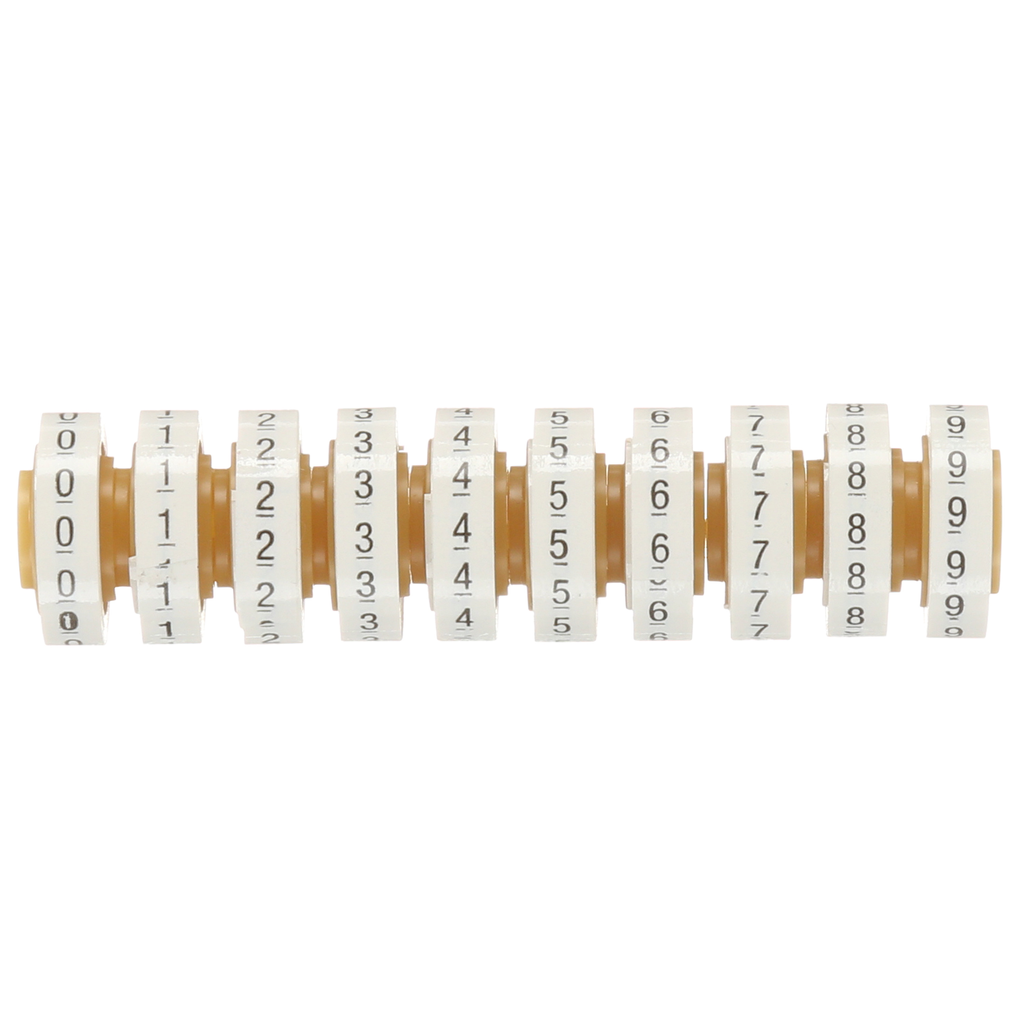

3M™ ScotchCode™ Wire Marker Tape Refill Roll is a polyester film tape that is printed with consecutive numbers for easy identification. It is ideal for marking all types of wire and cable including power, fibre optic, electronic and telecommunications. The tape has an acrylic, pressure-sensitive adhesive and withstands temperatures of -40 to 250 degrees Fahrenheit (-40 to 121 degrees Celsius). This refill includes 10 rolls of 3M™ ScotchCode™ Wire Marker Tape printed with numbers zero to nine. It measures 0.215 in (5.46 mm) wide x 96 in (2.43 m) long and 3 mils (0.08 mm) thick.

Technical Information

Applications
Marking Wire And Cable
Material
Plastic
Max Operating Temperature
121.0 degrees C
Temperature Rating
-40 to 250 C
Type
Tape Roll Refill

Manufacturer Information

Brand
ScotchCode
Sub Brand
ScotchCode

General Product Info

12-Digit UPC
054007093688
Color
White
GTiN
00054007093688
Product Type
Identification
Product UPC
05400709368

Dimensions

Overall Length
2.4 m
Width
5.46 mm

Certifications and Compliance

Country of Origin
USA
Features
  • High tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
  • Available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols
  • Can be used for applications with operating temperatures between -40°F (-40°C) to 250°F (121°C)
