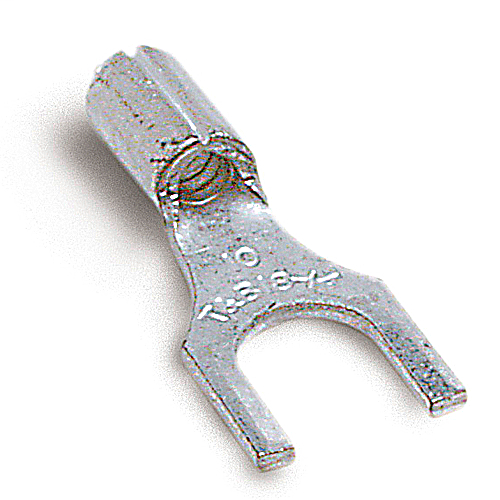

Thomas & Betts C133 #6 12-10 AWG Non-Insulated Fork Terminal

Manufacturer: Thomas & Betts | Catalog # C133 | North Coast Part # 124064
$49.31/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

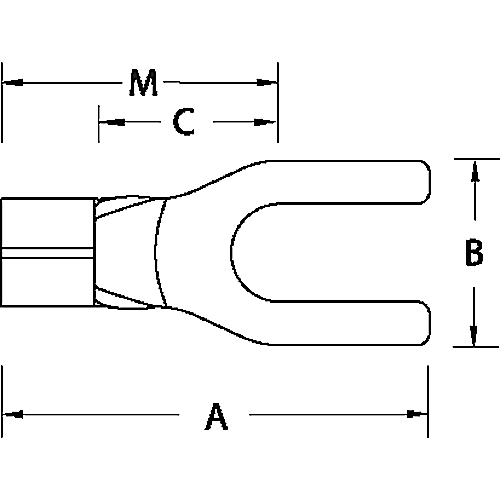

Non-Insulated Fork Terminal, Length .77 Inches, Width .31 Inches, Bolt Hole #6, Wire Range #12-#10 AWG, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
12-10 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Temperature Rating
150 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210829432
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363934912
Product UPC
78621082943
Features
  • These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
