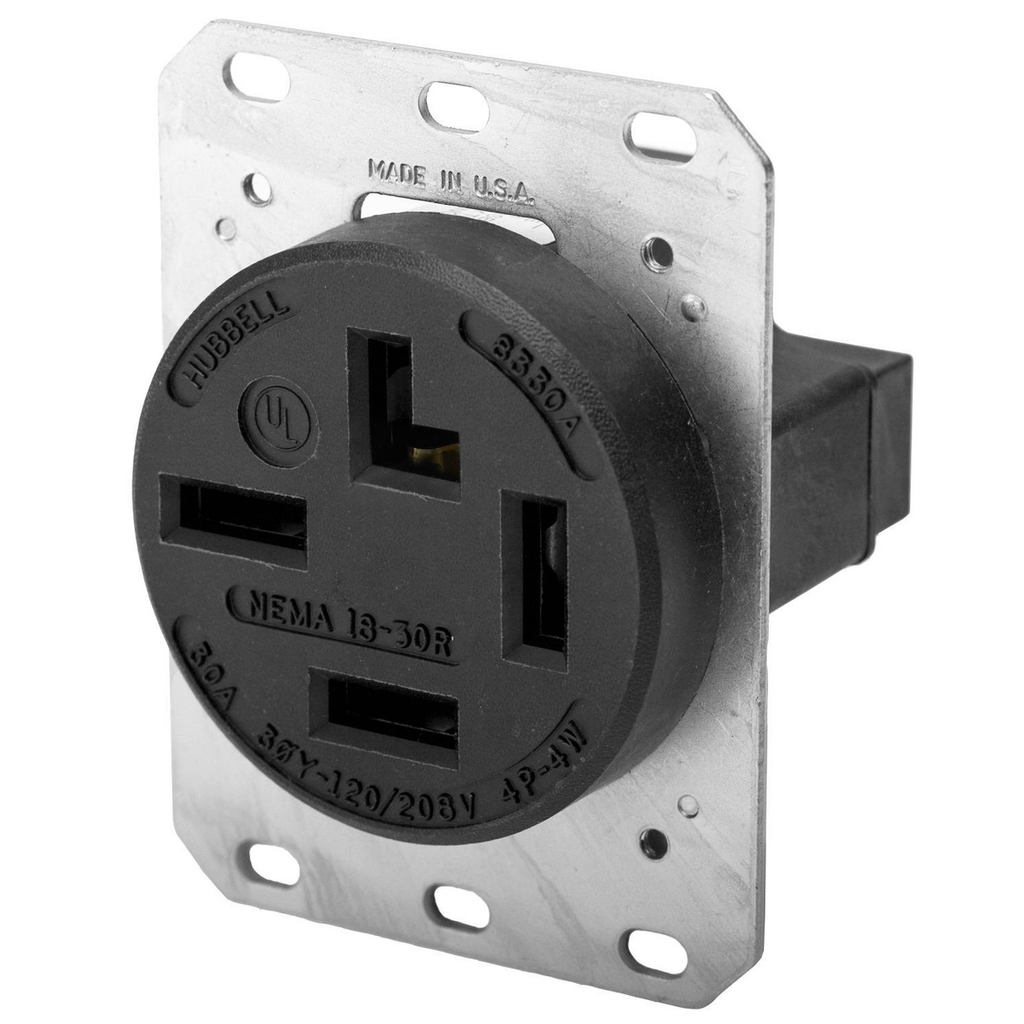

Product image for Hubbell HBL8330A 30 Amp 120/208 VAC 4-Pole 4-Wire NEMA 18-30R Black Single Straight Blade Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL8330A 30 Amp 120/208 VAC 4-Pole 4-Wire NEMA 18-30R Black Single Straight Blade Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBL8330A | North Coast Part # 124313
$135.84/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Straight Blade Devices, Receptacles, 4-Pole 4-Wire non Grounding receptacles and plugs, 30A 3 Phase,120/208 V, 18-30R, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty
Conductor Size
12-6 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
3 hp
Material
Composite
NEMA
18-30R
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
TC Connection
Back and Side Wired
Type
Single
Voltage
2,000 Volt
Wattage
6240 Watt
Wire Count
4
Wire Size
12-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015453
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585015453
Product UPC
78358501545
Weight
0.6 lb

Dimensions

Height
2.678 Inch
Length
3.28 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Standard
