Blackburn ASR7525 Extruded Aluminum Splice

Manufacturer: Thomas & Betts / Blackburn | Catalog # ASR7525 | North Coast Part # 124334
$19,753.78/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 750 kcmil, Min 250 kcmil

Technical Information

Conductor Size
750 - 250 kcmil
Conductor Type
Copper
Material
Aluminum
Standard
UL E9809
Type
Dual Rated

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786133260
Finish
Tin Plated
GTiN
00783786133260
Product UPC
78378613326

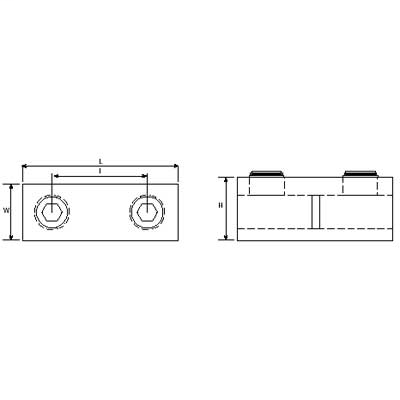

Dimensions

Height
1-3/4 Inch
Length
6-1/4 Inch
Width
1 5/8 in
Features
  • Easy Installation - no special tools required.
Notes
  • Two set screws per end. Not CSA Certified.
