Thomas & Betts C221 #8 Bolt Hole 12-10 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal

Manufacturer: Thomas & Betts | Catalog # C221 | North Coast Part # 124688
$86.98/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

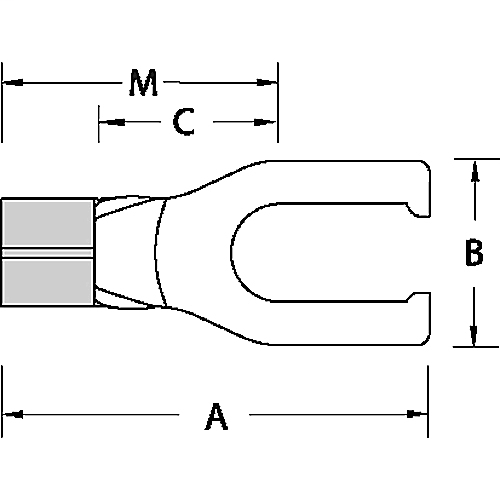

Non-Insulated Locking Fork Terminal, Length .85 Inches, Width .37 Inches, Bolt Hole #8, Wire Range #12-#10 AWG, Copper, Tin Plated, 500 Pack

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
12-10 AWG
Insulation Material
PVC
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
150 degrees C
Type
Non-Insulated, Locking
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210811062
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363934905
Product UPC
78621081106
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
