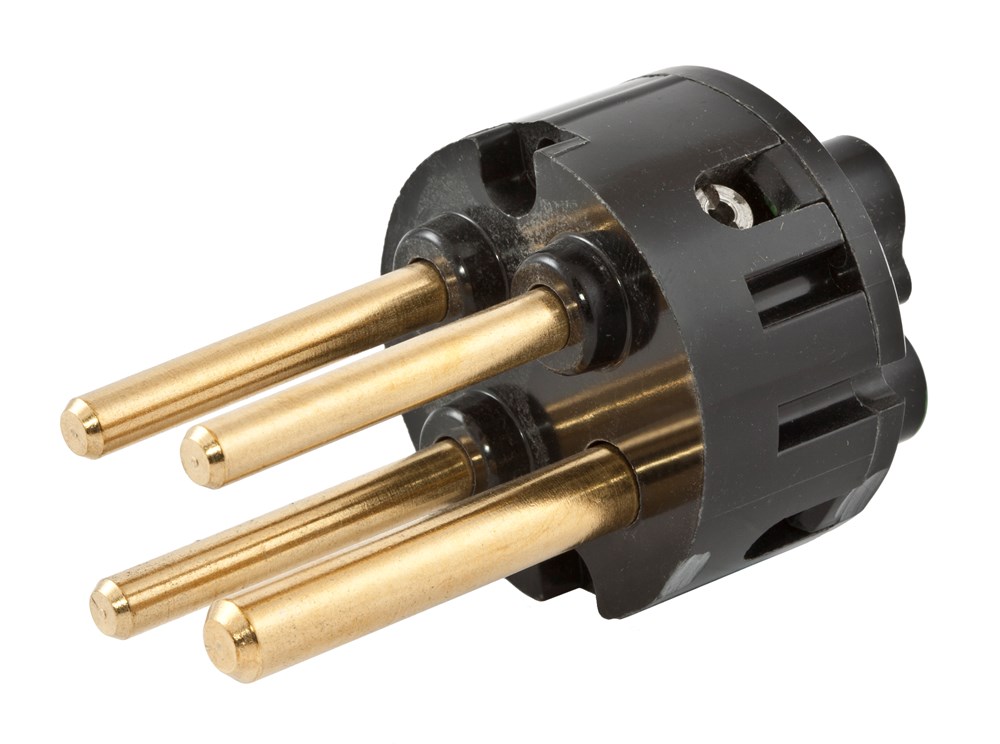

HWDK IN520EM PS,IEC,REP INT,5W,20A

Manufacturer: Hubbell / Kellems | Catalog # IN520EM | North Coast Part # 124701
$286.58/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Replacement Interior, For 20A 5-Wire, Furnished with Screws, Black Thermoset Polyester

Technical Information

Amperage
16 Amp
Applications
HBL516P6W, HBL516B6W, HBL520P9W, HBL520B9W, HBL520P7W, HBL520B7W, HBL520P5W, HBL520B5W
Conductor Size
14-10 AWG
Current
16 A
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
UL
Style
For Plugs/Inlets
TC Connection
Pressure Screw Terminals
Type
Replacement Interior
Voltage
220/380;240/415
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
IEC 309 Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585420141
Color
Black
Environmental Conditions
Watertight When Installed
GTiN
00783585420141
Product Series
Accessories
Product UPC
78358542014
Weight
0.6 lb

Dimensions

Height
2.418 Inch
Length
3.978 Inch
Width
2.418 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 3,000V AC
  • Electrical - Max Working Voltage - 600V AC RMS
  • Environmental - Flammability - UL94-5VA and V-0 classification
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Operating Temperatures - Max. Continuous:75°C
  • Min. Continuous:-40°C w/o impact
  • Mechanical - Impact Resistance - In accordance with UL746C
  • Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Voltage Rating
  • 220/380 V
  • 240/415 V
Features
  • Thermoset Polyester Contact Carrier
  • Watertight
  • Withstands higher temperatures due to overload or arcing
