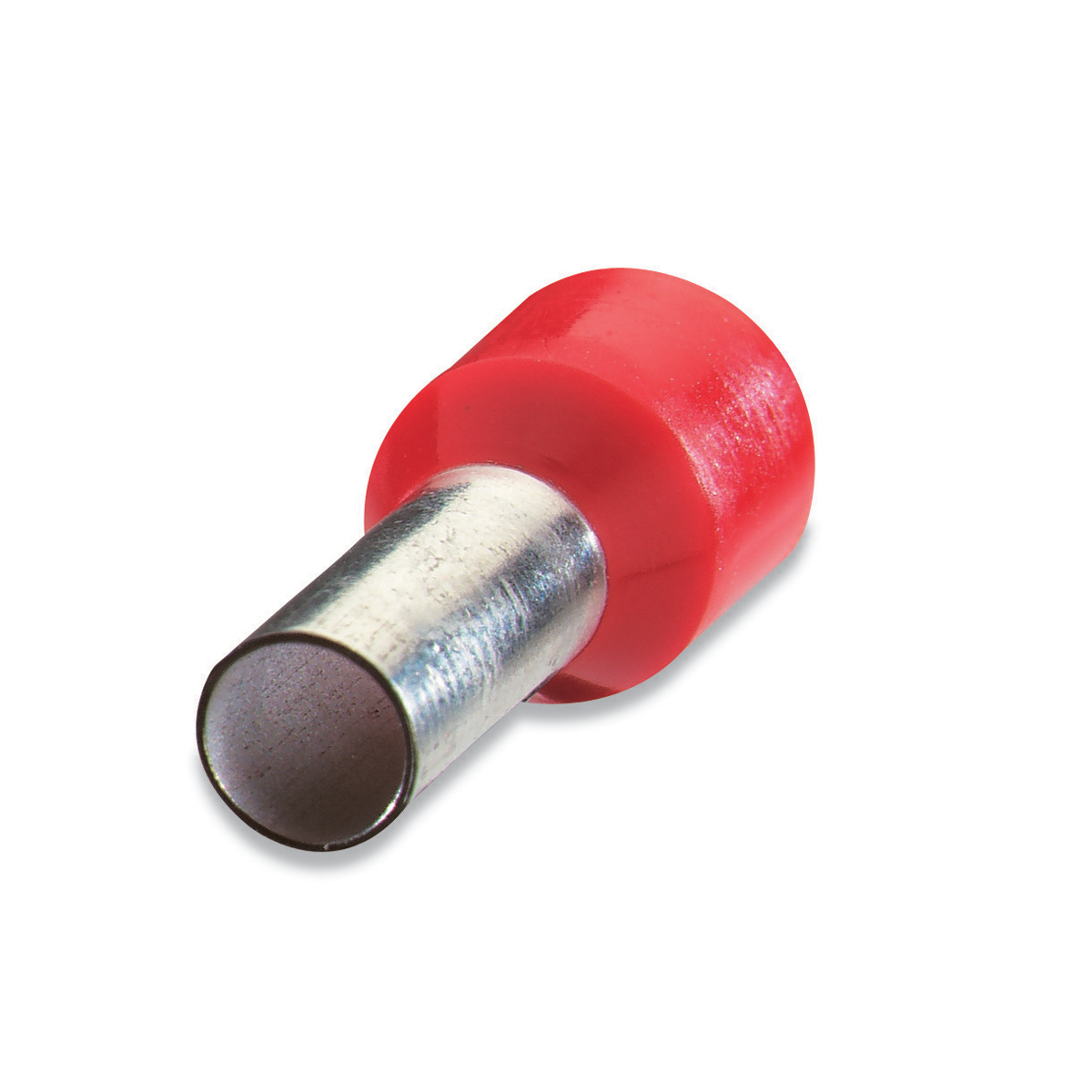

Thomas & Betts F2051 1.26 Inch Length 2 AWG 35 mm.. Wire Range Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2051 | North Coast Part # 1250
$635.20/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Polypropylene-Insulated Ferrule, Total Length 1.260 Inches/32mm, Pin Length .708 Inches/18mm, Pin Diameter .335 Inches/8.5mm, Base Diameter .492 Inches/12.5mm, Wire Range 2 AWG/35.00mm2, Color Red, Copper, Tin Plated

Technical Information

Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.708 in
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Voltage
300 VAC
Wire Size
2 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335551
Color
Red
Finish
Tin Plated
GTiN
05415022180695
Product UPC
78621033555

Dimensions

Inside Diameter
0.335 in
Outside Diameter
0.492 in
Overall Length
1.26 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
