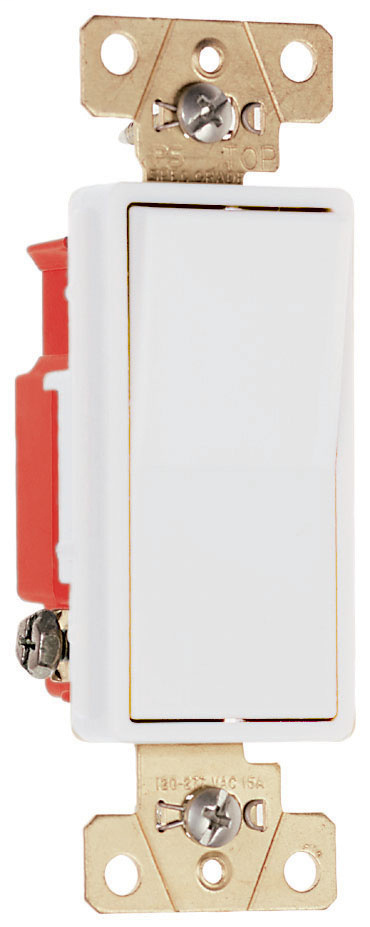

Pass & Seymour 2623-W 20 Amp 120/277 VAC 3-Way White Polycarbonate Screw Mounting Rocker Decorator Switch

Manufacturer: Legrand / Pass & Seymour | Catalog # 2623W | North Coast Part # 12500

$10.62/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch
Three-way, Back and Side Wire, Decorator Switch, 20 amps, 120/277 volts, Brown.

Technical Information

Action
Three pole
Actuator
Rocker
Amperage
20 Amp
Applications
For Residential/Commercial use
Blade Dimensions
4.2 in
Contact Rating
120/277 VAC, 20 A
Enclosure
Nylon
Material
Thermoplastic
Mounting Type
Wall, Flush, Screw
Number of Poles
3 Pole
Size
4.2 in
Style
Decorator
Type
3 Way
Voltage
120 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
White
GTiN
00785007539554
Product UPC
78500753955

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Width
1.3 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • All terminal screws backed out, ready-to-install.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Tri-drive ground, terminal, and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • Integral auto-ground clip for positive ground to metal boxes.
