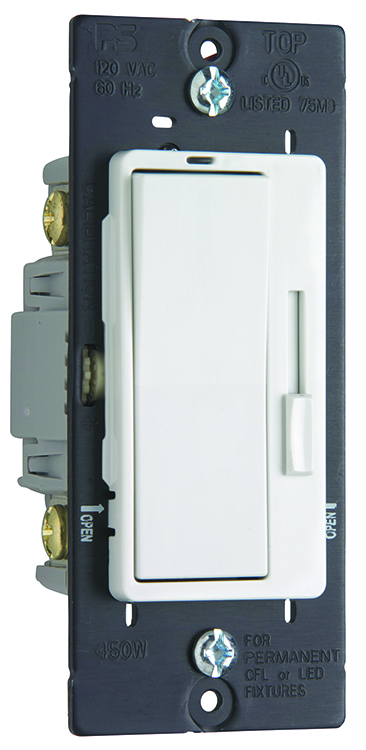

Product image for Pass & Seymour HCL453PMM-TC 450W 120V Multi Location Dimmer Multi Color
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour HCL453PMM-TC 450W 120V Multi Location Dimmer Multi Color

Manufacturer: Legrand / Pass & Seymour | Catalog # HCL453PMMTC | North Coast Part # 1250392
$104.71 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn opens monday 5:00am pt
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Allows precise dimming control of a light or fixture. Pair with a Multi-Location Remote Dimmer to control the same fixture from another spot in the room. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
For LED Retrofit, Incandescent/Halogen, CFL Lighting Control, Residential Applications
Bulb Compatibility
CFL,Incandescent,LED
Connection Type
Screw Terminal
Enclosure
Thermoplastic
Frequency
120 Hz
Material
Thermoplastic
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
3 Pole
Number of Switches
1
Operating Temperature
0 - 40 degrees C
Power Rating
450 W
Switch Type
Paddle
TC Connection
Screw Terminals
Type
Multi-Location, Master, Phase Cut-Off/Cut-On
Voltage
120 Volt
Wattage
700 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007039740
Color
Ivory,Light Almond,White
Environmental Conditions
< 95% RH Non-Condensing
Finish
Matte
GTiN
00785007039740
Product UPC
78500703974

Dimensions

Depth
1-1/4 Inch
Height
4-1/4 Inch
Warranty Length
Limited Lifetime
Width
2.5 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • For use with most incandescent, CFL/LED (with the exception of 0 - 10v options) and MLV dimmable bulbs. Installs easily with 3-way wiring for multi-location dimming (use with up to nine remote dimmers).
  • Can also be used in single-pole applications for solitary control.
  • Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Constant memory features returns lights to their previous level after a power failure or outage.
  • No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • cULus Listed
  • UL Listed
