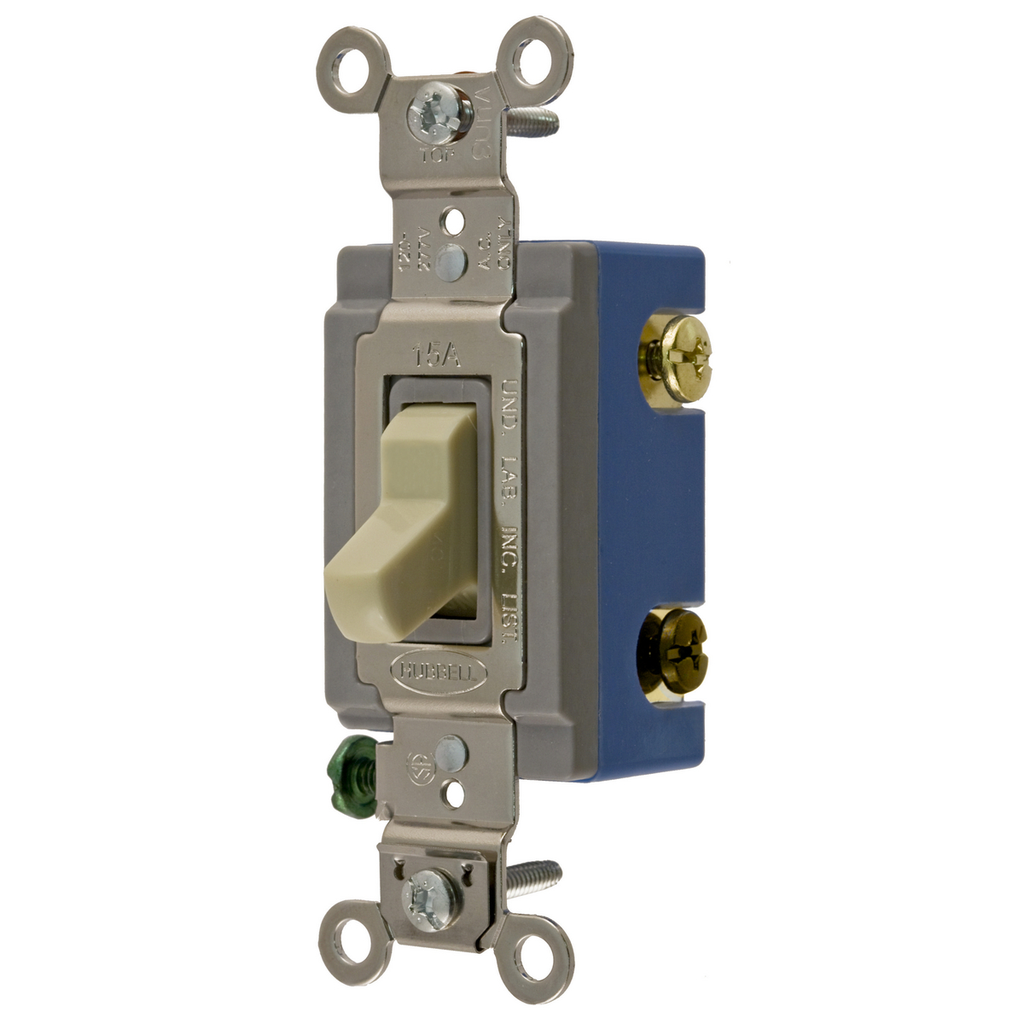

Hubbell Wiring Devices HBL1204I 15 Amp 120/277 VAC 4-Way Ivory Toggle Switch

Manufacturer: Hubbell / Kellems | Catalog # HBL1204I | North Coast Part # 12567

$75.58/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Out of stock, call for availability
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired, Ivory Toggle

Technical Information

Action
DPDT
Actuator
Toggle
Applications
Back and Side Wired
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 A
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
Maximum continuous 75C and minimum -40C without Impact

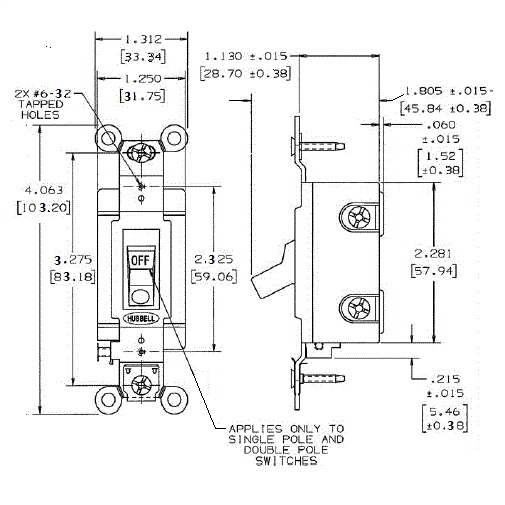

Size
4.06 in x 1.31 in x 1.87 in
Standard
UL
TC Connection
Back and Side Wired
Type
General Purpose, Standard, 4-Way, 2-Position, Extra Heavy-Duty
Voltage
120-277 Volt
Wattage
4155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
AC Toggle Switches

General Product Info

Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585430386
Product Series
Extra Heavy Duty
Product UPC
78358543038
Weight
0.2 lb

Dimensions

Height
1.66 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
China
