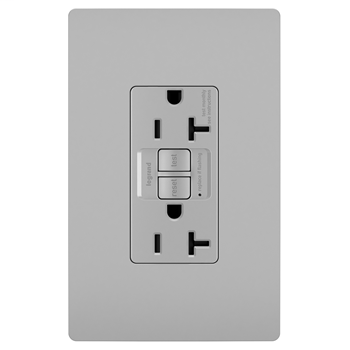

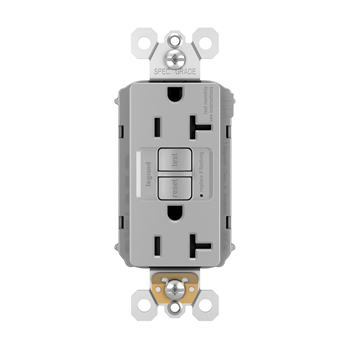

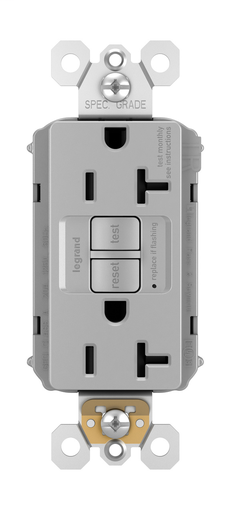

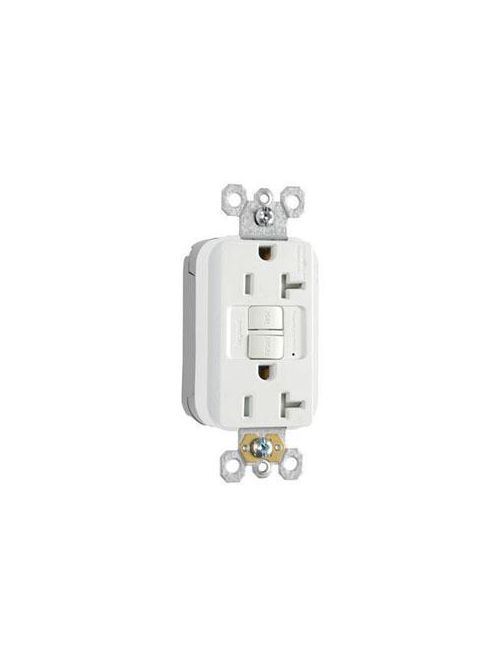

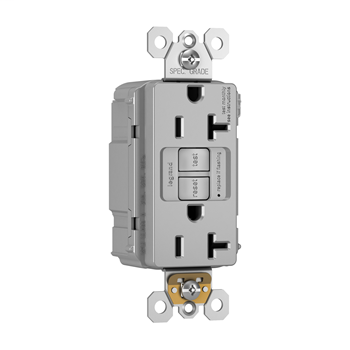

Product image for P&S PT2097TRGRY SELF TEST PTAIL GFC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

P&S PT2097TRGRY SELF TEST PTAIL GFC

Manufacturer: Legrand / Pass & Seymour | Catalog # PT2097TRGRY | North Coast Part # 1259319
$57.84/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Friday 5:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail® information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.For detailed GFCI receptacle information, visit our GFCI Headquarters.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial/Residential
Connection Type
Built-in Connector
Frequency
60 Hz
Interrupt Rating
4.0 A
Material
Thermoplatic
Mounting Type
Box
NEMA
5-20R
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Indoor,Residential,Tamper-Resistant
TC Connection
Built-in Connector
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
PLUGTAIL® Specification Grade Tamper-Resistant 20A Self-Test Duplex GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007048216
Color
Gray
Environmental Conditions
95 PCT
GTiN
00785007048216
Product UPC
78500704821

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Meets National Electrical Code® Tamper-Resistant requirements.
  • Faster, more reliable installation.
  • No exposed terminals create a finger-safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® Connector.
  • GFCI works with existing 3-wire PlugTail Connectors creating a non-feed-thru application for facility owners.
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Auto-Ground clip assures a positive ground to metal box.
  • Meets 2015 UL requirements.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • Trip indicator light (red LED).
  • 10kA short circuit rating.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • High-impact-resistant thermoplastic construction.
  • Zinc-plated steel mounting strap.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Class A rated GFCI.
  • Supplied with matching TP wall plate.
  • Tri-drive screws.
  • Supply Voltage: 125VAC, 60 Hz
  • Supply Voltage Range: 102-132 VAC
  • Trip Threshold: 5 +/- 1 mA
  • Trip Time: 0.025 sec., nominal per UL Standard
Eco-Benefit Information
  • RoHS Compliant
