Thomas & Betts F2052 2 AWG 35 mm.. Red Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2052 | North Coast Part # 1262
$703.29/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

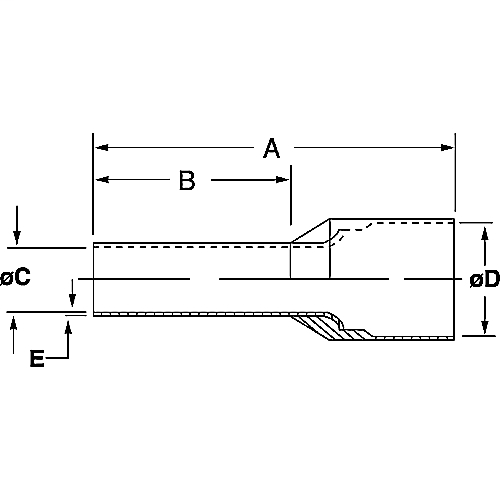

Polypropylene-Insulated Ferrule, Total Length 1.535 Inches/39mm, Pin Length .984 Inches/25mm, Pin Diameter .335 Inches/8.5mm, Base Diameter .492 Inches/12.5mm, Wire Range 2 AWG/35.00mm2, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
2 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.984 in
Temperature Rating
105 degrees C
Type
Standard
Voltage
300 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335568
Color
Red
Finish
Tin Plated
GTiN
00786210335568
Product UPC
78621033556

Dimensions

Inside Diameter
0.335 in
Overall Length
1.535 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
