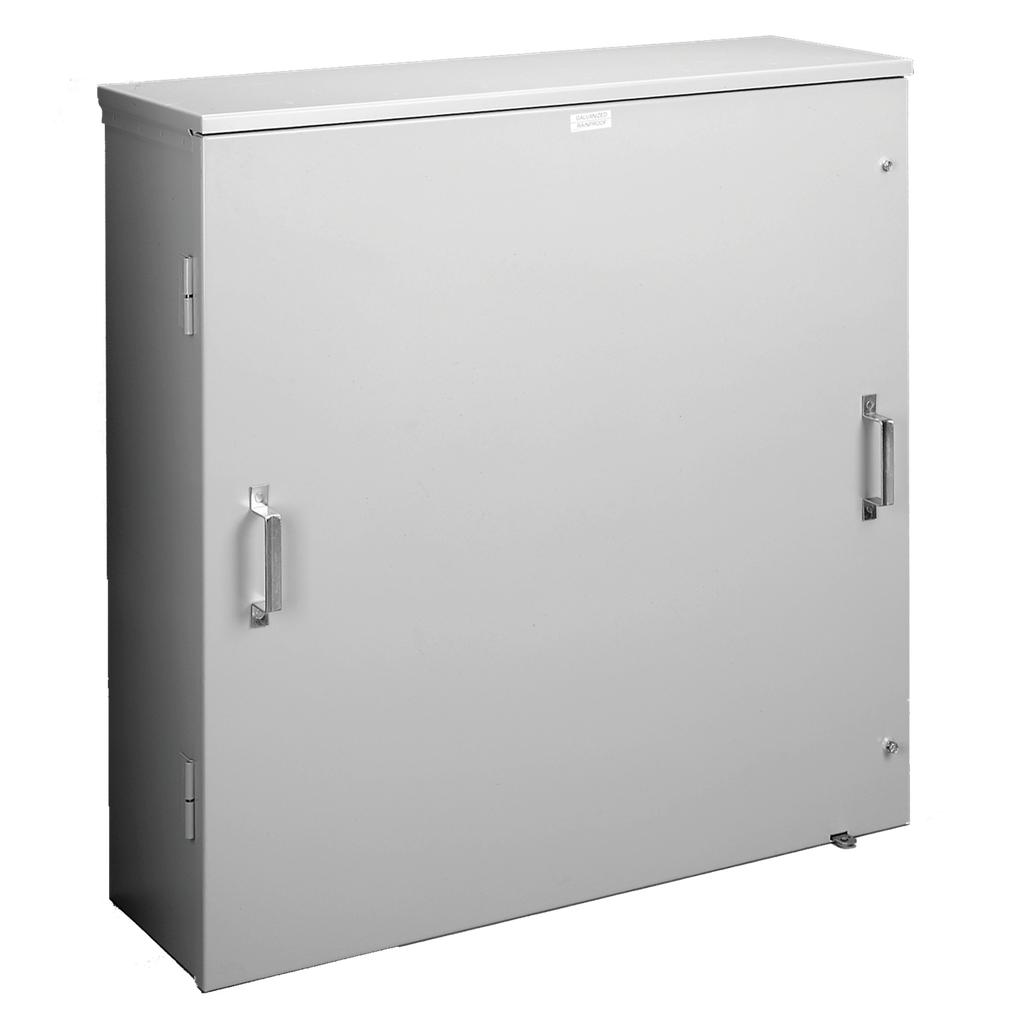

Product image for Hoffman A363611HCT 36 x 36 x 11 Inch 12 Gauge Galvanized Steel NEMA 3R Current Transformer Hinge Cover Enclosure
Email

Hoffman A363611HCT 36 x 36 x 11 Inch 12 Gauge Galvanized Steel NEMA 3R Current Transformer Hinge Cover Enclosure

Manufacturer: nVent Hoffman | Catalog # A363611HCT | North Coast Part # 126259
$1,858.92/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
CT Cabinet Hinged-Cover, Type 3R provide outdoor protection and security for instrument current transformers, which are frequently required for transformer-rated watt-hour metering. Cabinets can also be used as junction or service boxes and house meter, transformer, relay or terminal assemblies.

Technical Information

Applications
Controls and Drives; Power Distribution
Body Thickness
2.66 mm
Color Coding
ANSI 61
Enclosure
3R
Gauge
12 AWG
Material
Steel
Size
36.00x36.00x11.00 in
Standard
50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27525,IEC 60529,IP32,NEMA Type 3R,Type 3R,UL 50
Type
Utility / Canadian Cabinets and Splitters

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510427399
Color
Gray
Finish
Galvanized
GTiN
00783510427399
Product UPC
78351042739
Weight
125 lb

Dimensions

Depth
11 Inch
Height
13-3/4 Inch
Length
39-1/2 Inch
Width
36 in
Features
  • Drip shield top and seam-free sides, front and back
  • Mounting holes on back of enclosure
  • Mounting studs are provided on the enclosure body
  • Cover is removable in the open position
  • Door handles provided
  • Provisions for padlocking
  • No gasketing or knockouts
  • Ground lug
  • Mounting provisions for optional door stop
  • Enclosures are finished with paint over plated surfaces
