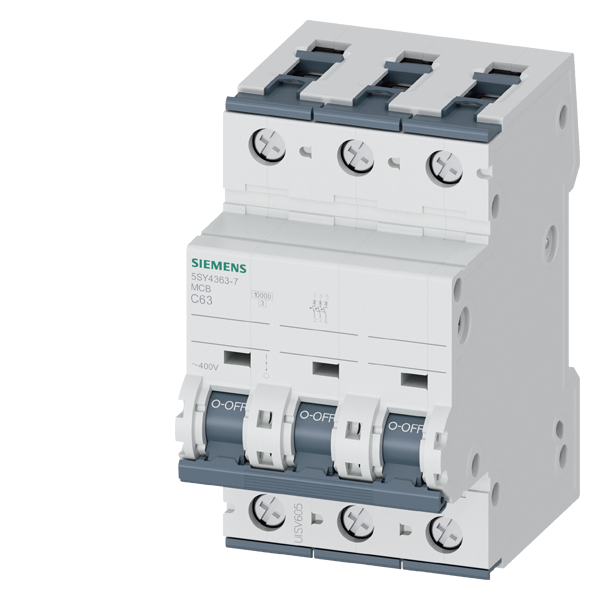

Product image for Siemens 5SY4363-7 5SY4 MCB, 3P,4
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens 5SY4363-7 5SY4 MCB, 3P,4

Manufacturer: Siemens | Catalog # 5SY4363-7 | North Coast Part # 1262647
$305.81/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SUPPLEMENTARY PROTECTOR,3P,63A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 63 Amps, 480 VAC, Trip Characteristic Curve C, 54mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
63 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
63 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
3 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
UL 1077,IEC,EN 60 947-2,CE,CSA 22.2 NO. 235,EN 60 898
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554876412
Class
C
GTiN
00754554876412
Product UPC
75455487641
Weight
1.130 lb

Dimensions

Height
3-1/4 Inch
Length
3-3/4 Inch
Width
2.350 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.043 kg
Green End-of-Life CO2
0.537 kg
Green Manufacturing CO2
1.716 kg
Green Total CO2
117.034 kg
Green Transport-to-DC CO2
0.392 kg
Green Use-Phase CO2
114.346 kg
