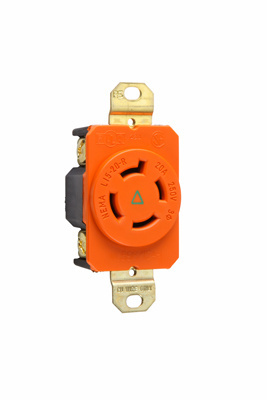

Product image for Pass & Seymour IGL1520-R Turnlok Single Receptacle, 4wire, 20A 3phase 250V Isolated Ground
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour IGL1520-R Turnlok Single Receptacle, 4wire, 20A 3phase 250V Isolated Ground

Manufacturer: Legrand / Pass & Seymour | Catalog # IGL1520R | North Coast Part # 1263966
$96.62/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Turnlok Single Receptacle 4wire 20amp 3phase 250volt Isolated Ground

Technical Information

Amperage
20 Amp
Applications
Industrial
Material
Nylon
NEMA
L15-20
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
4.18x1.68x2
Type
Single Receptacles
Voltage
250 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007152210
Color
Orange
GTiN
00785007152210
Product UPC
78500715221
UNSPSC
39121403

Dimensions

Depth
1.19 Inch
Height
2.29 Inch
Width
1.61 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
  • 140 joules of energy absorption in each of the three modes.
  • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage inall 3 modes, 500V.
  • LED indicator light. Response time less than 1 nanosecond for unmounted MOV.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Leakage current: 0.5 mA at 25: C/120VAC.
  • 3 18mm super MOVs to suppress transients in all modes : equally.
  • Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
  • Varistor voltage: 150V RMS. Back and side wire capability including ground terminal.
  • Operating temperature: -40: C to 85: C(-40: F to 185: F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Certifications
  • cULus Listed
