P&S 53879 SURFACE BOX

Manufacturer: Legrand / Pass & Seymour | Catalog # 53879 | North Coast Part # 1264395
$269.22/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

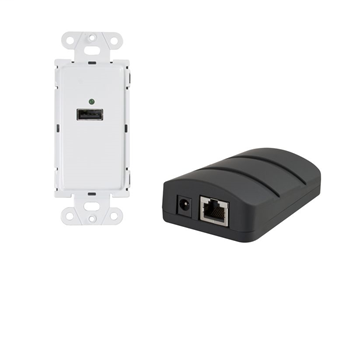

The Trulink USB 2.0 Superbooster was designed for systems integrators, installers and other end users seeking an innovatively simple yet powerful solution for extending USB signals beyond their native 16.4ft length limitation. Specifically for use in commercial environments, the Trulink USB 2.0 Superbooster is the only USB 2.0 solution on the market that is available in both a dongle and wall plate version. The wall plate and dongle can be interchanged to fit the needs of any installation requiring high performance and maximum flexibility.

Technical Information

Applications
Industrial
Cable Type
Cat 5
Material
Nylon
Size
6.3x3.1x3
Type
USB Over Cat5

Manufacturer Information

Brand
C2G
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007552300
Color
Black
GTiN
00785007552300
Product Series
TruLink
Product UPC
78500755230
Features
  • Integrated UTP power inserter technology
  • Interchangeable design with swappable components wall plates and dongles
  • Extends USB from 16.4ft up to 328ft over Cat5/6 (UTP/STP, solid/stranded)General
  • USB Specification - USB 2.0
  • USB Data Bandwidth - Up to 480Mbps
  • Maximum Cable Distance - 100m (328ft)Power
  • Power Adapter Input - 100 - 240V~50/60Hz
  • Power Adapter Output - 24.0VDC, 1000mA
  • Power Adapter Pin Diameter - 5.5mm
  • Power Adapter Center Pin Polarity - Positive
  • Power Adapter Cable Length - 12ft
  • USB Power Output - 5V, 500mAPhysical Characteristics
  • Transmitter Connectors - (1) USB B Female, (1) DC Power Female*, (1) RJ45 Female
  • Receiver Connectors - (1) USB A Female, (1) DC Power Female*, (1) RJ45 Female
  • Wall Plate Insert Dimensions - 66.5 x 30.0mm
  • Wall Plate Dimensions - 103.6 x 40 x 44mm
  • Dongle Dimensions - 86 x 57 x 30mm*The female DC power port on the wall plate transmitter and receiver is a screw terminal designed to accept bare wire.
