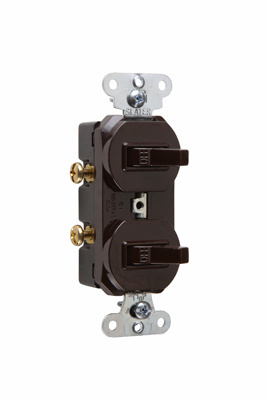

Pass & Seymour 690 15 Amp 120/277 VAC 1-Pole Brown Non-Grounding Duplex Combination Switch

Manufacturer: Legrand / Pass & Seymour | Catalog # 690 | North Coast Part # 1264587

$840.38/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Single Pole, Double Switch, 15 amps, 120/277 volts, White.

Technical Information

Action
SP
Actuator
Toggle
Amperage
15 Amp
Applications
Residential/Commercial
Contact Configuration
N-O
Contact Rating
15 Amp, 120/277 VAC
Number of Poles
1 Pole
Operating Cycles
30k
Operating Temperature
Maximum continuous +60C, minimum -30C
Size
1.32 L x 0.94 W x 4.06 H In
TC Connection
Side wire, non-grounding
Type
Combination, Double
Voltage
0.433 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Brown
GTiN
00785007690019
Product UPC
78500769001
UNSPSC
39121406

Dimensions

Depth
0.94 Inch
Height
3.28 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • Easily accessible break-off separate or common feed.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • Two devices fit into the space of one.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • For covering patents, see www.legrand.us/patents.
  • Grounding combination devices meet NEC Requirements.
