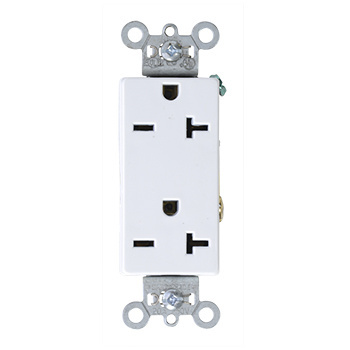

Product image for Pass & Seymour 26852-BK Heavy-Duty Decorator Spec Grade Duplex Receptacle, Back & Side Wire, 20A 250V - Black
Image thumbnail 0
Image thumbnail 1

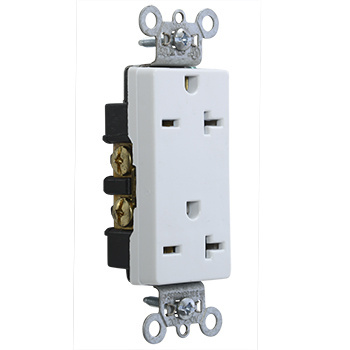

Image thumbnail 2

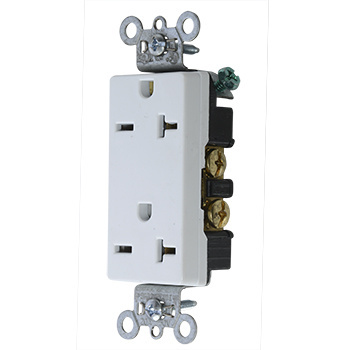

Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour 26852-BK Heavy-Duty Decorator Spec Grade Duplex Receptacle, Back & Side Wire, 20A 250V - Black

Manufacturer: Legrand / Pass & Seymour | Catalog # 26852BK | North Coast Part # 1264657
$64.30 /ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 250volt Brown

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
6-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Size
1.322 L x .833 W x 3.813 H In
Style
Decorator
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007786378
Color
Black
GTiN
00785007786378
Product UPC
78500778637
UNSPSC
39121406

Dimensions

Depth
1.188 Inch
Height
3.281 Inch
Length
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
