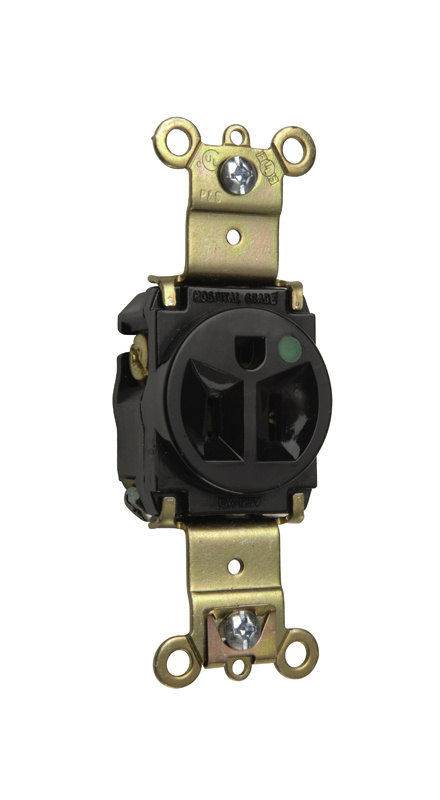

Product image for Pass & Seymour 8201-BK Heavy-Duty Hospital Grade Single Receptacle, Back & Side Wire, 15A 125V - Black
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 8201-BK Heavy-Duty Hospital Grade Single Receptacle, Back & Side Wire, 15A 125V - Black

Manufacturer: Legrand / Pass & Seymour | Catalog # 8201BK | North Coast Part # 1264665
$37.58/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Heavy-Duty Hospital Grade Single Receptacle, Back & Side Wire, 15amp 125volt, Light Almond

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Hospital
Material
Nylon
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x 1.093 W x 3.68 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Single Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007820348
Color
Black
GTiN
00785007820348
Product UPC
78500782034
UNSPSC
39121406

Dimensions

Depth
1.093 Inch
Height
3.68 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 : #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cUL Listed
  • Federal Spec Listed
