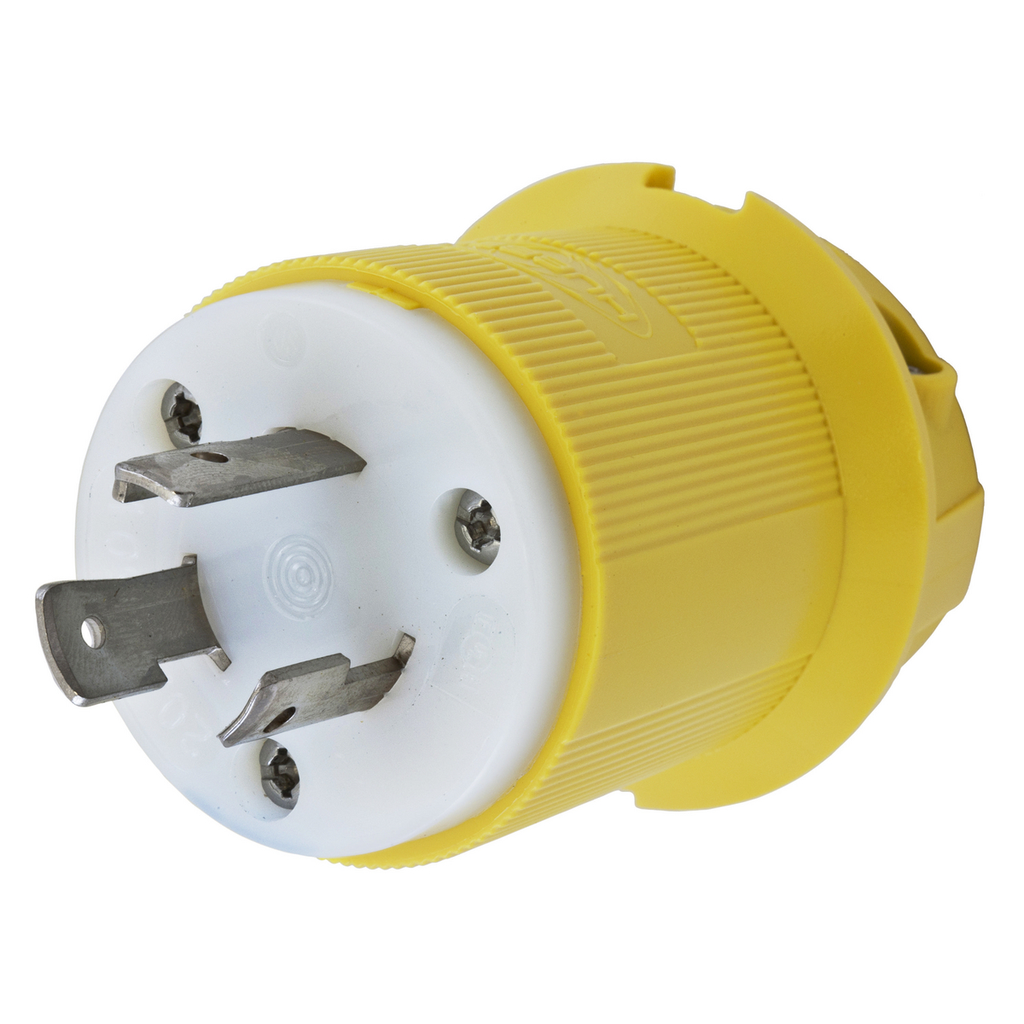

Hubbell HBL23CM21 Locking Plug, CM, 20A 250V, L6-20P, YL

Manufacturer: Hubbell / Kellems | Catalog # HBL23CM21 | North Coast Part # 126483
$55.39/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Corrosion Resistant Insulgrip® Plug, 20A, 250V AC, 2 Pole, 3 Wire Grounding, Yellow

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.36 - 0.93 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L6-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Bronze
Size
2.75 in x 1.97 in x 1.97 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
250 Volt
Wattage
5000 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585038117
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585038117
Housing Material
Yellow Nylon
Product UPC
78358503811
Weight
0.25 lb

Dimensions

Height
1.97 Inch
Length
2-3/4 Inch
Width
1.97 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion Resistant
