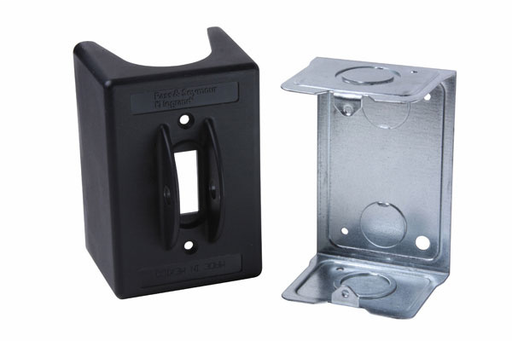

Pass & Seymour 7806-P NEMA 1 Nylon Enclosure w/ 1/2" & 3/4" Knockouts

Manufacturer: Legrand / Pass & Seymour | Catalog # 7806P | North Coast Part # 1265132
$26.30/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
NEMA 1 Nylon Enclosure with 1/2inch & 3/4inch Knockouts

Technical Information

Amperage
30 Amp
Applications
Industrial
Contact Rating
30amp, 600vac
Enclosure
NEMA 3R aluminum
Indoor Outdoor
Both
Material
Nylon
Mounting Type
Backside Screw
Number of Poles
sp
Size
3.3"
TC Connection
Side & Back Wired
Type
2-Pole
Voltage
600 Volt
Wattage
1 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007780659
Color
Black
Finish
Matte
GTiN
00785007780659
Product UPC
78500778065
Used With
Manual Controllers Switch

Dimensions

Depth
71.12 mm
Height
99 mm
Width
71.12 mm

Certifications and Compliance

Country of Origin
Mexico
Features
  • High horsepower rating of 20HP. Compact design. Gull-wing shaped brass terminal pressure clamps. Constructed of glass-reinforced thermoplastic. Two-point contact arms. One-piece contact carrier.
  • UL508 and cULus Listing of individual device and assembled device within enclosure. Heavy-duty zinc-plated steel strap. Two brass rivets secure strap to housing.
  • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals. Oversized silver alloy contacts.
  • 2-3/4 inch hubs (7812-EX and 7813-EX). 2-1/2 inch knockouts on back and 2-1/2 inch -3/4 inch knockouts on top and bottom (7812-P, 7813-P, 7806-P). 2-1/2 inch knockouts on bottom and back (7832 and 7833).
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
