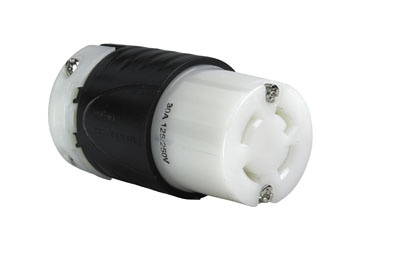

P&S L1430CGCM TURNLOK CONN 4W 30A 1

Manufacturer: Legrand / Pass & Seymour | Catalog # L1430CGCM | North Coast Part # 1265595
$202.38/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet Brochure Installation Instructions
TURNLOK CONN 4W 30A 125/250V

Technical Information

Amperage
30 Amp
Applications
Industrial
Duty Rating
Heavy Duty
Material
Nylon
NEMA
L14-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4.0
Size
5x2.5x2.4
Type
Connector, Ground Continuity Monitoring
Voltage
125 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Black
GTiN
00785007265668
Product UPC
78500726566
UNSPSC
39121403

Dimensions

Diameter
2.20 in
Length
3.33 Inch

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
  • Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.
  • Color-coded terminal screws are backed-out for fast installation.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Exclusive neoprene dust shield on devices seals cable entry. Optional weatherproof boots (sold separately).
  • Exclusive, rugged two-piece cord grip (15 Amp only) accepts a wide range of cord widths. Provides uniform pressure for superior retention of conductors.
  • Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.
  • Chemical- and impact-resistant nylon housing features horizontal, easy grip ribs on back body.
  • Dual, bright LED indicators with 360: visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross. For 250V configurations: Hot to ground cross will be indicated by a green and red LED.
  • NEMA configurations always visible for fast identification without disconnecting.
Certifications
  • Federal Spec Listed
  • cULus Listed
