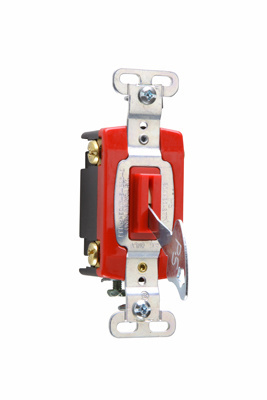

Product image for Pass & Seymour PS20AC4-REDL 4way Lock Switch, Back & Side Wire, 20A 120/277V - Red
Email

Pass & Seymour PS20AC4-REDL 4way Lock Switch, Back & Side Wire, 20A 120/277V - Red

Manufacturer: Legrand / Pass & Seymour | Catalog # PS20AC4REDL | North Coast Part # 1265605
$100.08/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
4way Lock Switch, Back & Side Wire, 20amp 120/277volt, Light Almond

Technical Information

Action
DPDT
Actuator
Toggle Switch
Amperage
20 Amp
Applications
Commercial,Residential
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
2 Pole
Size
4.6x2.5x2.4
Type
Lock Key
Voltage
120 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007266832
Color
Red
Finish
Matte
GTiN
00785007266832
Product UPC
78500726683
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.320 in

Certifications and Compliance

Certifications
CSA,FEDSPEC,UL
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
  • UL Listed
  • CSA Listed
