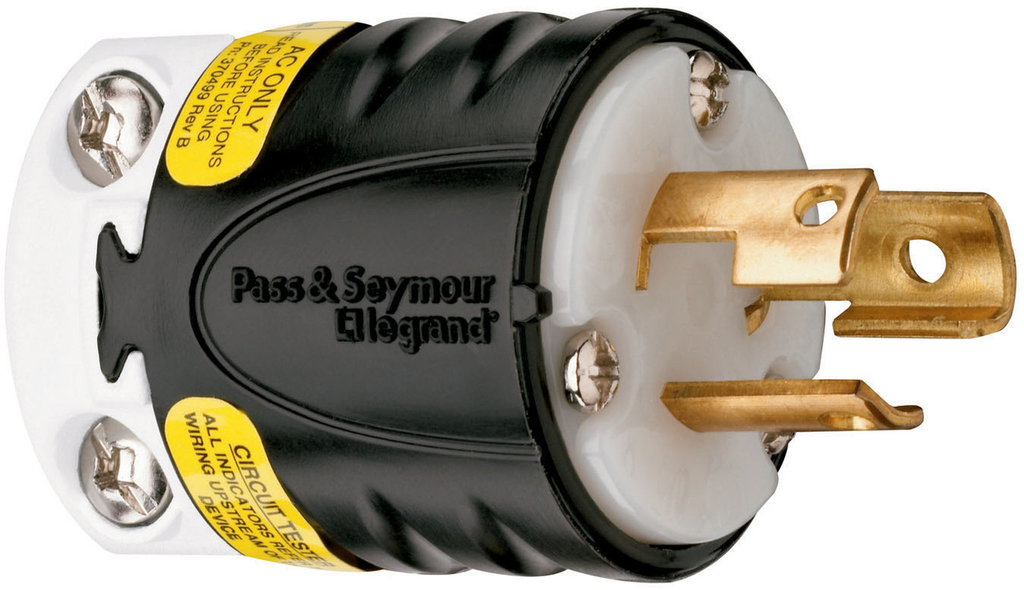

Product image for Pass & Seymour PSL515-PGCM Locking Ground Continunity Monitoring GCM Plug, 15A 125V
Email

Pass & Seymour PSL515-PGCM Locking Ground Continunity Monitoring GCM Plug, 15A 125V

Manufacturer: Legrand / Pass & Seymour | Catalog # PSL515PGCM | North Coast Part # 1265994
$27.39/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Installation / Instruction Manual
TURNLOK GCM PLUG 3W 15A 125V

Technical Information

Amperage
15 Amp
Applications
For Commercial Use
Conductor Size
2 AWG
Duty Rating
Heavy Duty
Material
Thermoplastic
NEMA
L5-15P
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.25"
Type
Industrial Grade
Voltage
125 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007236705
Color
Black
GTiN
00785007236705
Product UPC
78500723670
UNSPSC
39121403

Dimensions

Diameter
1.516 Inch
Length
1.844 Inch
Width
1.516 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.
  • Dual, bright LED indicators with 360 degrees visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross.
  • For 250V configurations: Hot to ground cross will be indicated by a green and red LED.
  • NEMA configurations always visible for fast identification without disconnecting.
  • Exclusive neoprene dust shield on devices seals cable entry. Optional weatherproof boots (sold separately).
  • Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body.
  • Exclusive, rugged two-piece cord grip (15 Amp only) accepts a wide range of cord widths. Provides uniform pressure for superior retention of conductors.
  • Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.
  • Color-coded terminal screws are backed-out for fast installation.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
Certifications
  • cULus Listed
  • Federal Spec Listed
