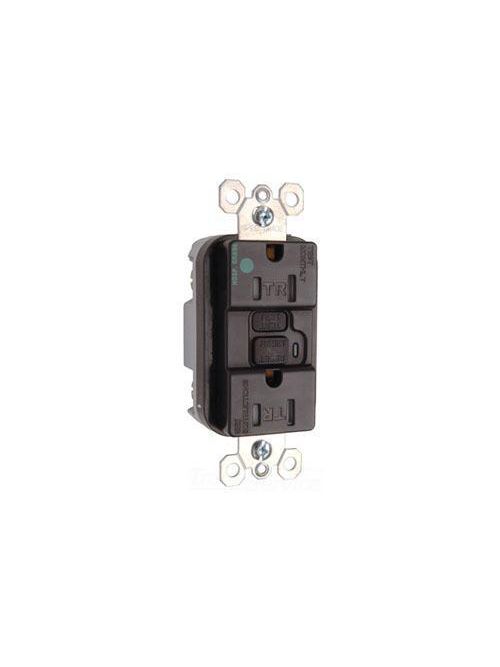

P&S 1595-HGTR 15A GFCI RCPT

Manufacturer: Legrand / Pass & Seymour | Catalog # 1595-HGTR | North Coast Part # 1266123

$62.27/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Features patented SafeLock™ Protection—if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
15 Amp
Grade
Hospital
NEMA
5-15R
Style
Decorator
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour

General Product Info

Color
Brown
GTiN
00785007423051
Product UPC
78500742305

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
  • Class A rated GFCI.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • 10kA short circuit rating.
  • Extra-long strap.
  • FSUL Listed (Federal Specification WC596).
  • High-impact-resistant thermoplastic construction.
  • Ground screw has a back wire clamp for easy installation.
  • Dual-direction test and reset buttons.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Tri-drive screws.
  • Trip indicator light (red LED).
  • Two back wire holes per terminal.
  • Supplied with matching TP26 nylon wall plate.
  • Button colors match the device face.
  • For covering patents, see www.legrand.us/patents.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • 1/4" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Light Almond
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Ivory
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Gray
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Red
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Brown
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Black
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, White
