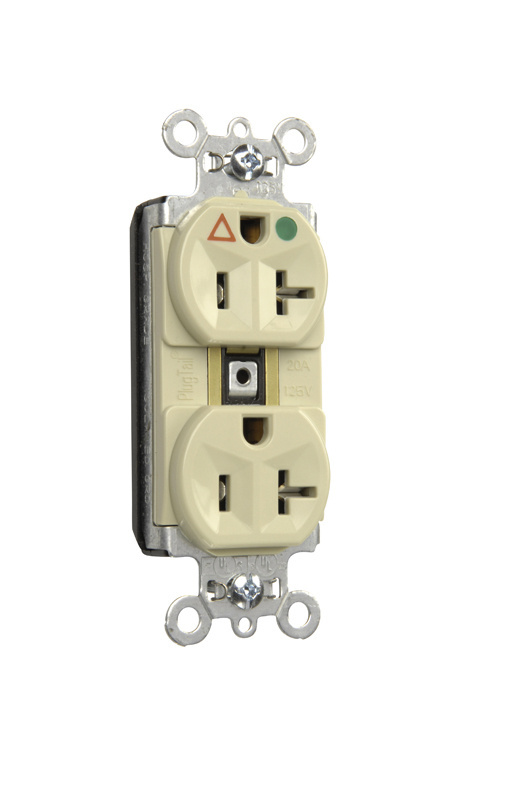

Product image for P&S PTIG8300I PT HG ISO GROUND, 20
Image thumbnail 0
Image thumbnail 1
Email

P&S PTIG8300I PT HG ISO GROUND, 20

Manufacturer: Legrand / Pass & Seymour | Catalog # PTIG8300I | North Coast Part # 1266129
$47.78/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
PlugTail® Isolated Ground Heavy-Duty Hospital Grade Receptacles, 20A, 125A

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Duty Rating
Heavy Duty
Grade
Hospital
Material
Thermoplastic
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
5.05x2.08x1.43
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007278064
Color
Ivory
GTiN
00785007278064
Product Series
PlugTail
Product UPC
78500727806
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
2-3/4 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
