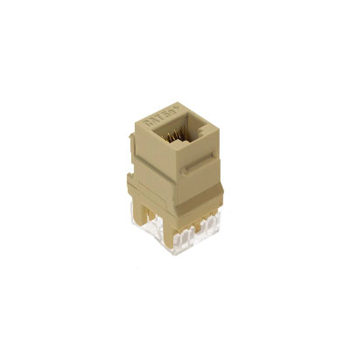

Product image for On-Q WP3450-IV 1-Port RJ45 Category 5E Ivory Plastic Snap-In Keystone Connector
Image thumbnail 0
Image thumbnail 1
Email

On-Q WP3450-IV 1-Port RJ45 Category 5E Ivory Plastic Snap-In Keystone Connector

Manufacturer: Legrand / Pass & Seymour | Catalog # WP3450IV | North Coast Part # 1266349
$6.63/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The vertical design of this high quality insert makes punchdown termination easy.  The insert is for use in all Keystone wall plates and is available in multiple colors, as well as convenient contractor packs.

Technical Information

Amperage
1.5 Amp
Applications
Residential use
Cable Size
24 - 22 AWG
Cable Type
Category 5E
Current
1.5 (@ 20 degrees C) Amp
Material
Bronze
Number of Ports
1
Number of Positions
8
Size
0.67 x 076 x 1.18 (17.02 x 19.30 x 29.97) in (mm)
TC Connection
RJ45 Female
Temperature Rating
14 - 140 degrees F
Termination Type
IDC Wire Guage
Type
RJ45, Female
Voltage
1000 Volt RMS

Manufacturer Information

Brand
OnQ Solutions
Sub Brand
On-Q

General Product Info

12-Digit UPC
804428024859
Color
Ivory
Environmental Conditions
0 - 93% RH Non-Condensing
Finish
Molded Plastic Chemically Etched with Diamond Core Finish, Sn Alloy Plated, Gold and Nickel Plated Spring Wire
GTiN
00804428024859
Product UPC
80442802485
Used With
Round, Flat and Solid Core Cables

Dimensions

Height
0.87 Inch
Length
1.28 Inch
Width
0.64 in
Features
  • High quality insert for use in multimedia wallplates
  • Rear retention caps ensure secure wire termination
  • Vertical design for easy punchdown termination
  • T568A and T568B wiring labels included
  • Meets Category 5e described in TIA/EIA-568-B.2
  • Insertion and extraction life is 750 Cycles Min
  • Jack housing is high-impact, flame resistant plastic, UL 94V-0
  • Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
  • Also available in contractor pack of 50 (WP3450-WH-50)
Eco-Benefit Information
  • RoHS Compliant
