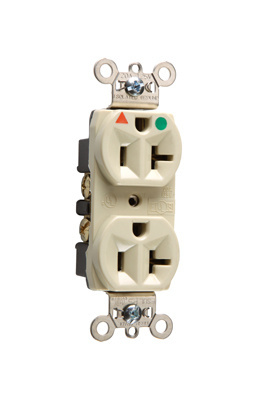

Product image for Pass & Seymour IG8300-I Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour IG8300-I Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Ivory

Manufacturer: Legrand / Pass & Seymour | Catalog # IG8300I | North Coast Part # 1266657
$52.46/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 20amp 125volt White

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Federal Specification,Hospital
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .922 W x 3.281 H In
Style
Duplex
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007242836
Color
Ivory
GTiN
00785007242836
Product UPC
78500724283
UNSPSC
39121406

Dimensions

Depth
0.922 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Corrosion-resistant plated steel strap.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
