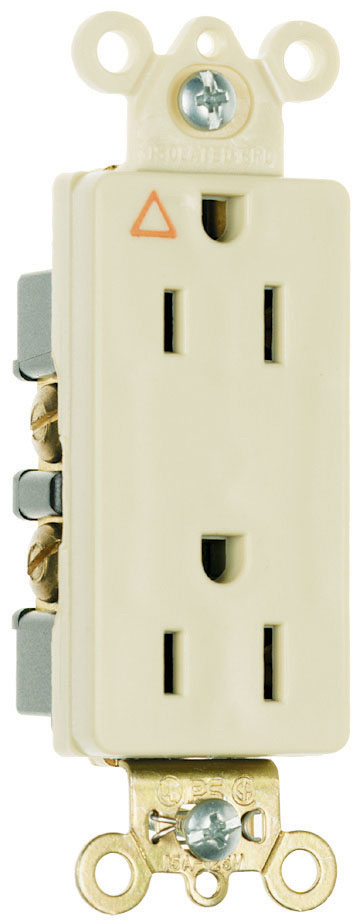

Product image for P&S IG5862 RECEP DUP 20A 250V COMM
Image thumbnail 0
Image thumbnail 1
Email

P&S IG5862 RECEP DUP 20A 250V COMM

Manufacturer: Legrand / Pass & Seymour | Catalog # IG5862 | North Coast Part # 1266658
$58.00 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn opens monday 5:00am pt
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle Back and Side-Wire 20A 250V

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Federal Specification
Indoor Outdoor
Indoor
Material
Nylon
NEMA
6-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Isolated Ground
Size
1.322 L x .922 W x 3.281 H In
Style
Duplex
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007242867
Color
Orange
GTiN
00785007242867
Product UPC
78500724286
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Corrosion-resistant plated steel strap.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
