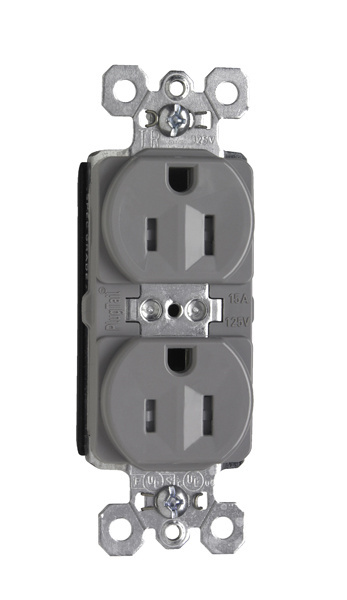

Product image for P&S PTTR5262GRY DUP RECEP TR 15A 12
Email

P&S PTTR5262GRY DUP RECEP TR 15A 12

Manufacturer: Legrand / Pass & Seymour | Catalog # PTTR5262GRY | North Coast Part # 1267058
$21.41/ea
ea
Log in or register to view your price, purchase history, and more!
191 available

For Pick Up

at Auburn Closes 3:00pm PT
191 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure
PlugTail® Tamper-Resistant Spec Grade Receptacles, 15A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
12 AWG
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Specification
Material
Nylon
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.5 L x .625 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007008494
Color
Gray
GTiN
00785007008494
Product Series
PlugTail
Product UPC
78500700849
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
2-3/4 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
  • Federal Spec Listed
