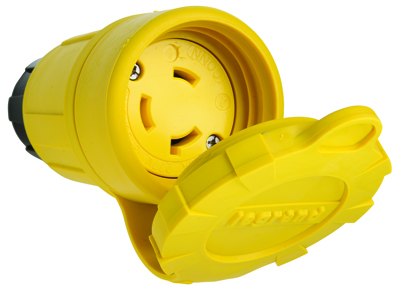

P&S 29W49 TURNLOK CONN IP67 30A 277

Manufacturer: Legrand / Pass & Seymour | Catalog # 29W49 | North Coast Part # 1267587

$109.23/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Locking Watertight Connector, 30amp 277volt, NEMA Configuration L7-30, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Technical Information

Amperage
30 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Cord Type
12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
Material
Rubber
NEMA
L7-30R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3.0
Type
Connector
Voltage
277 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007033250
Product UPC
78500703325
UNSPSC
39121403

Dimensions

Diameter
2.76 in
Length
4.88 Inch

Certifications and Compliance

Buy American Compliant
Yes
Country of Origin
USA
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
