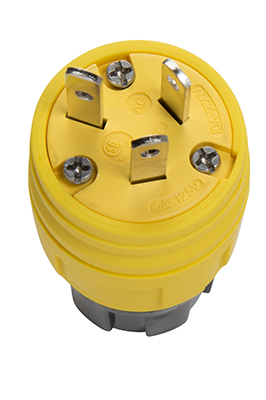

P&S 14W07 STR BLD PLG IP67 15A/10A

Manufacturer: Legrand / Pass & Seymour | Catalog # 14W07 | North Coast Part # 1267600
$56.76/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure
Rated watertight for 1,500 psi high-pressure hosedown, Pass and Seymour plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance.

Technical Information

Amperage
10 Amp
Applications
Commercial
Conductor Size
18-12 AWG
Connection Type
Cable
Cord Type
S, SO, ST, SJ, SJO, SJT, 18/3, to 12/3, .300" min to .625" max diameter
Enclosure
4X,6P
Material
Thermoplastic
NEMA Size
4X,6P
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Size
1.63" (Height) x 1.63" (Width) x 2.68 (Depth)
TC Connection
Cable
Type
Plug
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007032956
Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007032956
Product UPC
78500703295
UNSPSC
39121402

Dimensions

Depth
2.62 Inch
Diameter
1.63 Inch
Length
2.68 Inch
Width
1.85 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.
  • For covering patents, see www.legrand.us/patents.
