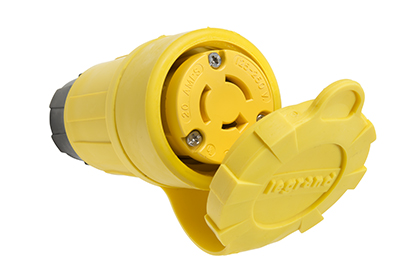

P&S 27W08 TL CONN IP67 3W 20A 125/2

Manufacturer: Legrand / Pass & Seymour | Catalog # 27W08 | North Coast Part # 1267607
$100.22/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet Brochure
Locking Watertight Connector, 20amp 125/250volt, Non NEMA Configuration, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Technical Information

Amperage
20 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Cord Type
12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
Enclosure
Non-NEMA
Material
Rubber
NEMA
Non-NEMA
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3.0
Type
Connector
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007033533
Product UPC
78500703353
UNSPSC
39121403

Dimensions

Diameter
2.53 in
Length
4.88 Inch

Certifications and Compliance

Buy American Compliant
Yes
Country of Origin
USA
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Color coded sealing bushings provided for large range of cord diameters
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Large ribs on body for a superior grip when mating.
