P&S 2977 TURNLK RBR CONN 30A 3PH 60

Manufacturer: Legrand / Pass & Seymour | Catalog # 2977 | North Coast Part # 1267677

$176.55/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure

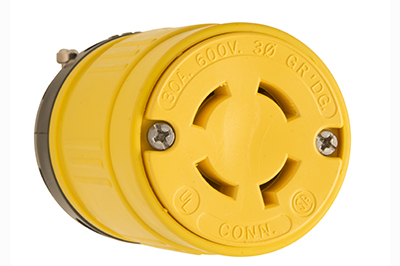

Locking Dust-Tight Rubber Connector, 30amp 3Y600, NEMA Configuration L17-30.

Technical Information

Amperage
30 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Conductor Size
12-6 AWG
Cord Type
12/4 S to 8/4 S, 6/4 MSHA, .640" min to .930" max
Material
Rubber
NEMA
L17-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Type
Locking Connector
Voltage
600 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007032970
Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007032970
Product UPC
78500703297
UNSPSC
39121403

Dimensions

Diameter
2.3 Inch
Length
4.04 Inch
Width
2.3 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
  • Two Screw cable clamp secures wire and provides superior strain relief
  • Quick lead assembly screws aid in a fast installation
  • Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
  • Keyed body and cover for easy assembly and alignment
  • For covering patents, see www.legrand.us/patents.
