P&S 2975 TURNLK RBR CONN 30A 3PH 25

Manufacturer: Legrand / Pass & Seymour | Catalog # 2975 | North Coast Part # 1267686
$111.97/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet Brochure

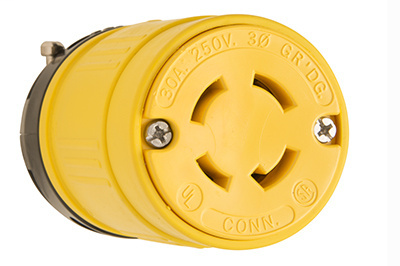

Locking Dust-Tight Rubber Connector, 30amp 3250, NEMA Configuration L15-30.

Technical Information

Amperage
30 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Cord Type
12/4 S to 8/4 S, 6/4 MSHA, .640" min to .930" max
Material
Rubber
NEMA
L15-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4.0
Type
Locking Connector
Voltage
250 Volt
Wire Size
12-6 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007033465
Product UPC
78500703346
UNSPSC
39121403

Dimensions

Diameter
2.30 in
Length
4.04 Inch

Certifications and Compliance

Buy American Compliant
Yes
Country of Origin
USA
  • Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
  • For covering patents, see www.legrand.us/patents.
  • Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
  • Two Screw cable clamp secures wire and provides superior strain relief
  • Keyed body and cover for easy assembly and alignment
  • Quick lead assembly screws aid in a fast installation
