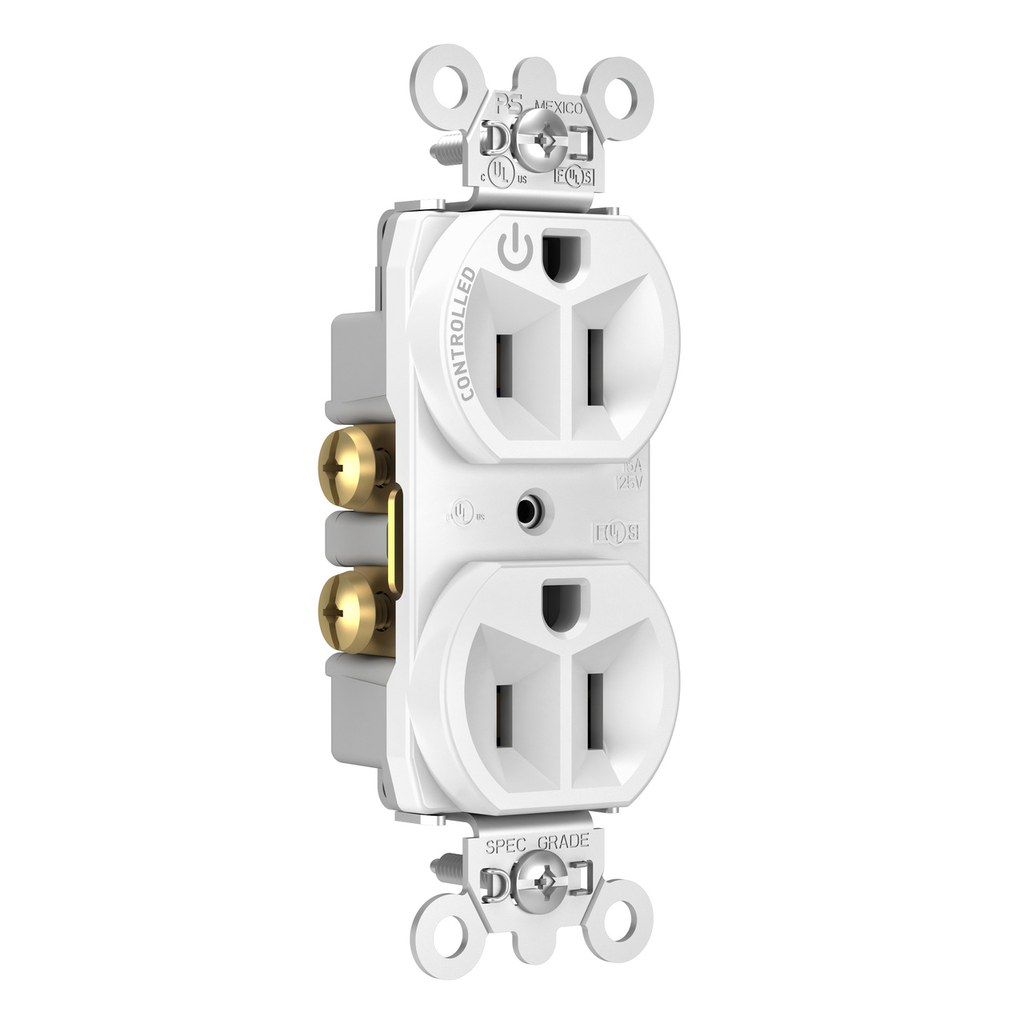

Product image for Pass & Seymour 5262CH-W 15A 125V Half Control Duplex Outlet White
Image thumbnail 0

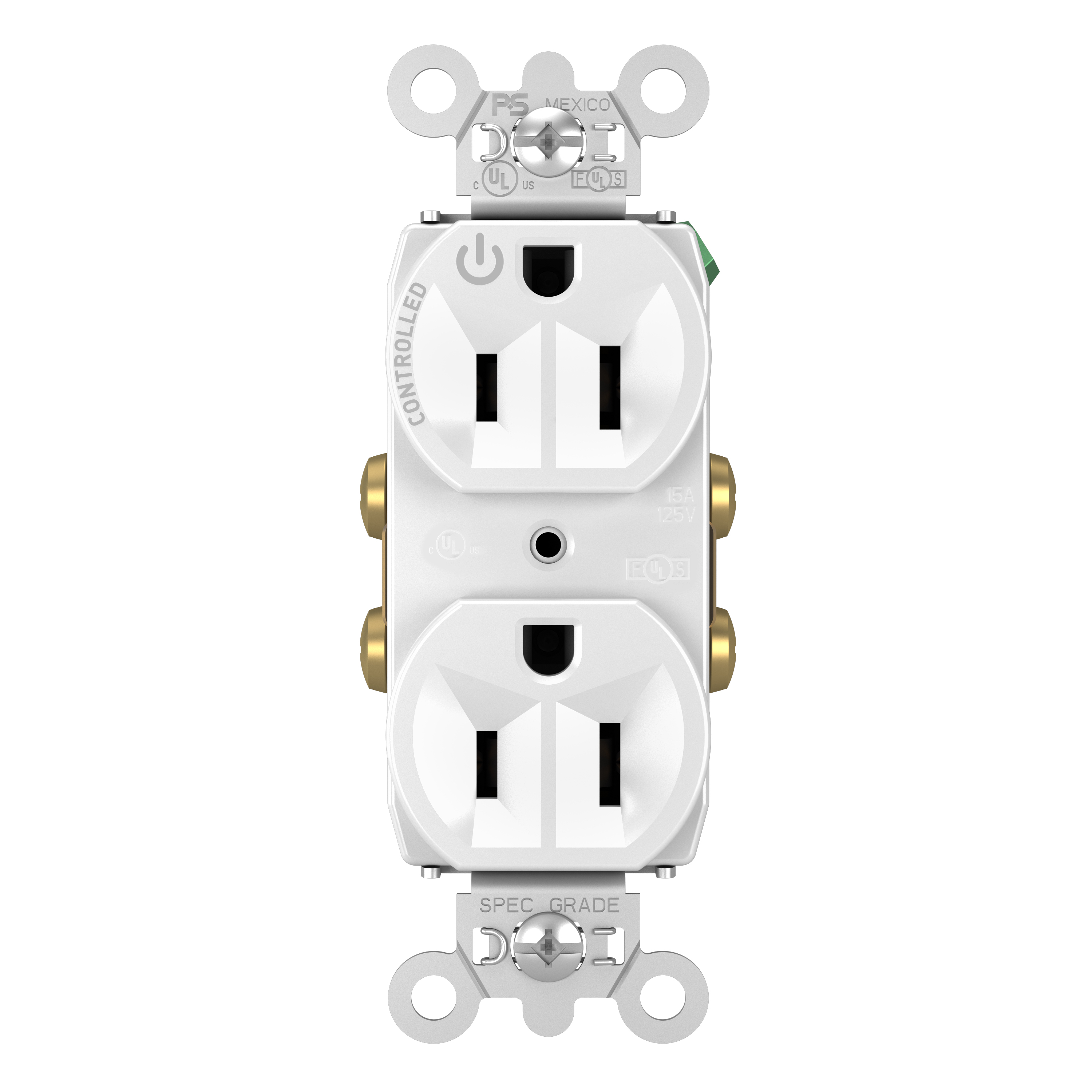

Image thumbnail 1
Image thumbnail 2

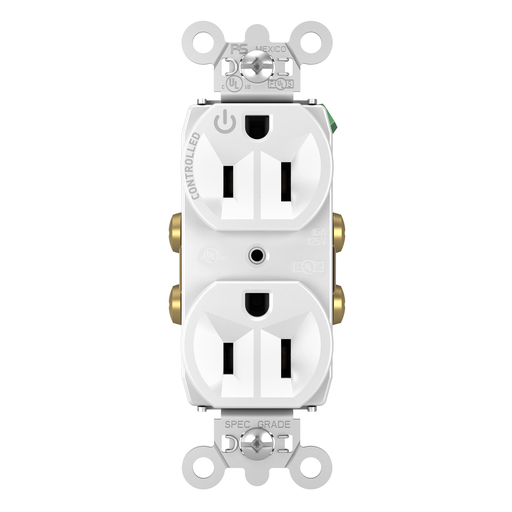

Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Pass & Seymour 5262CH-W 15A 125V Half Control Duplex Outlet White

Manufacturer: Legrand / Pass & Seymour | Catalog # 5262CHW | North Coast Part # 1267942
$12.50/ea
Log in or register to view your price, purchase history, and more!
287 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
287 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Technical Information

Amperage
15 Amp
Capacity
Duplex
Duty Rating
Commercial Spec,Hard Use
Grade
Commercial
Material
Plastic
Mounting Type
Flush
NEMA
5-15R
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007038309
Color
White
Finish
Gloss
GTiN
00785007038309
Product UPC
78500703830
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Can be wired to any number of system-based or stand-alone plug load control solutions.
  • Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • Federal Spec Listed
  • cULus Listed
