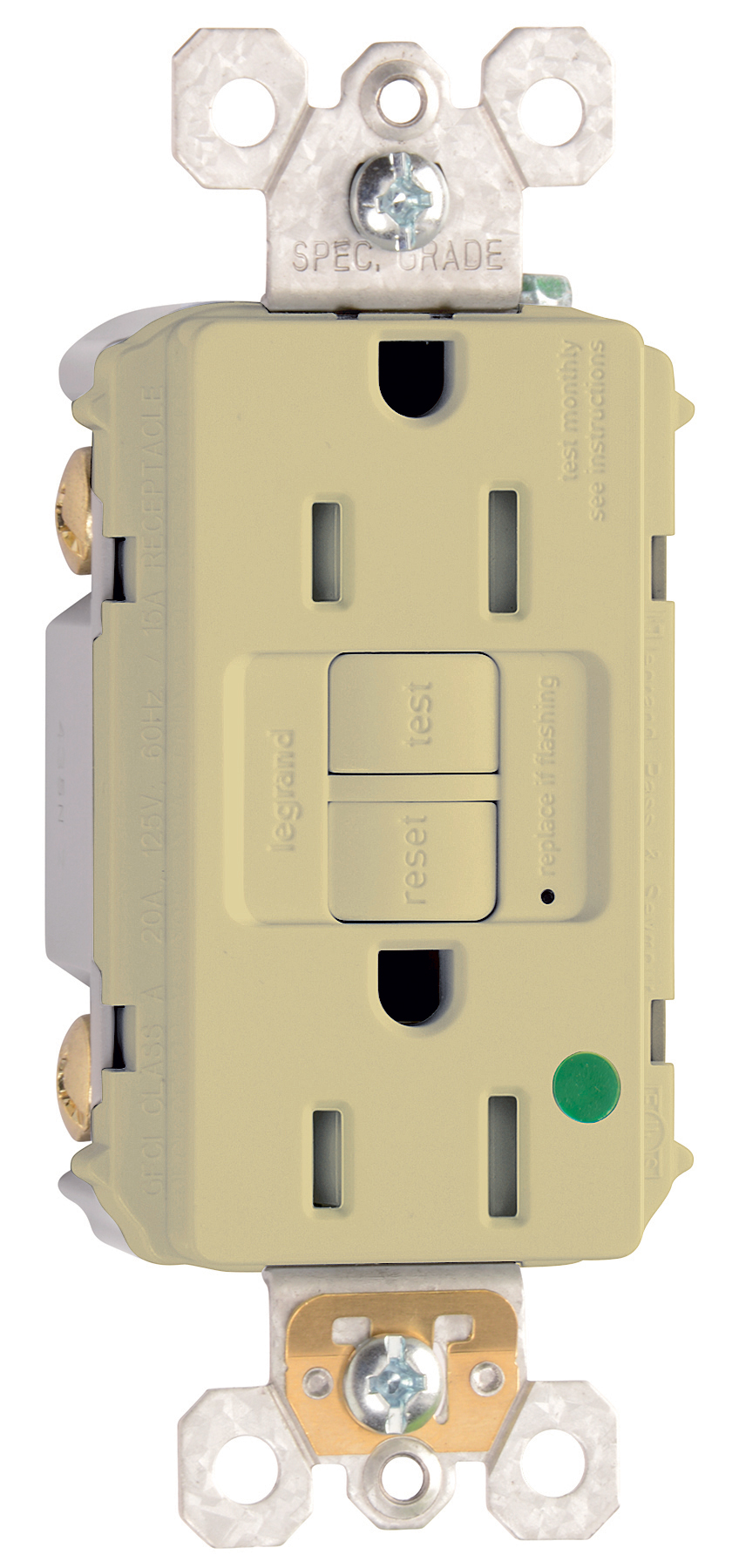

Product image for Pass & Seymour 1597-HGTRI 15A 125V Self Test GFCI Hospital Grade Tamper Resistant
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 1597-HGTRI 15A 125V Self Test GFCI Hospital Grade Tamper Resistant

Manufacturer: Legrand / Pass & Seymour | Catalog # 1597HGTRI | North Coast Part # 1267986
$65.66 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Brochure Installation / Instruction Manual Specification Sheet
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.For detailed GFCI receptacle information, visit our GFCI Headquarters.

Technical Information

Actuator
Control Circuit
Amperage
15 Amp
Applications
For Commercial, Residential Applications
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Frequency
60 Hz
Grade
Hospital
Grounding
Auto Grounding
Interrupt Rating
4.0 A
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Back and Side Wire
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Self-Test, Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
TradeMaster

General Product Info

12-Digit UPC
785007036329
Color
Ivory
Environmental Conditions
95% Relative Humidity
GTiN
00785007036329
Product UPC
78500703632

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Hospital Grade Tamper Resistant GFCI
Certifications
  • UL Listed
  • cULus Listed
