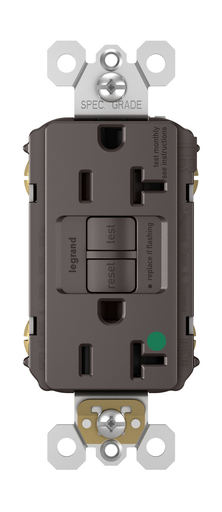

Pass & Seymour 2097-HGTR 20A 125V Self Test GFCI Hospital Grade Tamper Resistant Brown

Manufacturer: Legrand / Pass & Seymour | Catalog # 2097HGTR | North Coast Part # 1267988
$67.46/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Installation / Instruction Manual
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
For Commercial, Residential Applications
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Frequency
60 Hz
Grade
Hospital
Grounding
Auto Grounding
Interrupt Rating
4.0 A
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Back and Side Wire
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Self-Test, Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007035780
Color
Brown
Environmental Conditions
95% Relative Humidity
GTiN
00785007035780
Product UPC
78500703578

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Hospital Grade GFCI self-test
  • One-piece, brass, triple-wipe power contacts for lasting retention.
Certifications
  • cULus Listed
