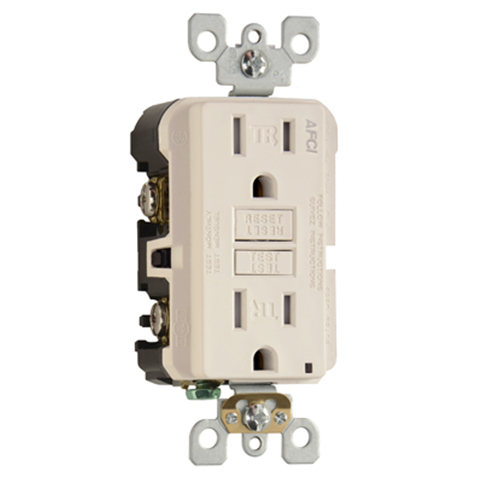

Product image for Pass & Seymour AF-15TRLA 15A 125V AFCI Tamper-Resistant Receptacle - Light Almond
Image thumbnail 0

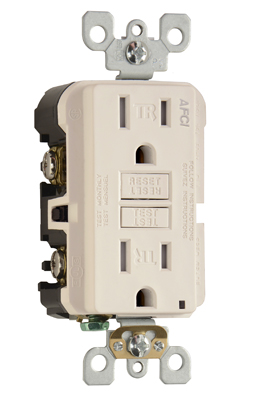

Image thumbnail 1
Email

Pass & Seymour AF-15TRLA 15A 125V AFCI Tamper-Resistant Receptacle - Light Almond

Manufacturer: Legrand / Pass & Seymour | Catalog # AF15TRLA | North Coast Part # 1268012
$55.03/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Legrand radiant AF15TRLA is a 15 amps duplex tamper-resistant AFCI receptacle with light almond color finish. This electrical outlet features high-impact-resistant, tamper-resistant, safelock-protection and black shutters. The Pass and Seymour Arc Fault Circuit Interrupter (AFCI) outlets are the latest innovation in electrical safety Technology and a Code-approved alternative to AFCI breakers. AFCI receptacles protect against electrical fires by detecting arc faults and de-energizing the circuit. Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space. Ground terminal back-wire for fast installation. Auto-ground clip assures a positive ground to metal box. Tamper-Resistant automatic shutter system prevents children from inserting objects such as hairpins or keys. Black shutters essentially disappear into the background for an invisible effect preferred by end users.

Technical Information

Amperage
15 Amp
Applications
Residential
Connection Type
Back and Side Wired
Grade
Residential
Material
Plastic
Mounting Type
Box
NEMA
5-15R
Operating Temperature
-35 to 66 degrees C
Size
1.27" Depth x 1.68" Width x 4.21" Height
Standard
CSA C22.2 No. 85,UL E23018,cULus
Style
TradeMaster
TC Connection
Back & Side Wired
Temperature Rating
-35 degrees C to 66 degrees C
Type
Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Trademaster

General Product Info

12-Digit UPC
785007029666
Color
Light Almond
GTiN
00785007029666
Product UPC
78500702966

Dimensions

Depth
1.27 Inch
Height
4.21 Inch
Width
1.68 in

Certifications and Compliance

Country of Origin
China
Available Options
  • TradeMaster® Tamper-Resistant Outlet Branch Circuit AFCI Receptacle, Ivory
  • TradeMaster® Tamper-Resistant Outlet Branch Circuit AFCI Receptacle, Light Almond
  • TradeMaster® Tamper-Resistant Outlet Branch Circuit AFCI Receptacle, White
Features & Benefits
  • Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space.
  • Auto-ground clip assures positive ground to metal box
  • Tamper-Resistant automatic shutter system prevents children from inserting objects such as hairpins or keys.
  • Ground terminal back-wire for faster installation.
  • High-impact-resistant thermoplastic construction for superior strength and durability.
  • Feed-through protection
