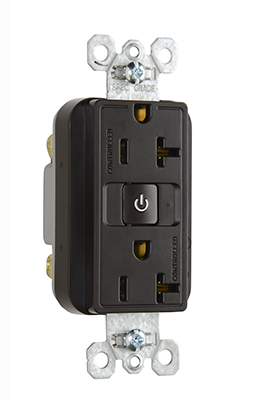

P&S RF26352CD PLUGLOAD RF REC 20A D

Manufacturer: Legrand / Pass & Seymour | Catalog # RF26352CD | North Coast Part # 1268039
$141.10/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Installation / Instruction Manual
Energy savings and code compliance can be easily achieved through automatic plug load control via wireless RF communication between the Plug Load RF Signal Pack (RFP) and the Plug Load RF Receptacle.

Technical Information

Amperage
20 Amp
Capacity
Dual
Duty Rating
Extra Heavy Duty
Grade
Specification
NEMA
5-20R
Termination Type
Back & Side Wire
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007040012
Color
Brown
GTiN
00785007040012
Product UPC
78500704001

Dimensions

Depth
1-1/4 Inch
Height
2.68 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
China
Certifications
  • Federal Spec Listed
  • UL Listed
  • cULus Listed
Features
  • Wireless control of plug load via RF communication and integral relay.
  • Available in 'TP' series, extra 3/16 inch width and height than Standard size plates: and 'TPJ' series, extra 3/16 inch width and height than Junior-Jumbo size plates.
  • Product meets requirements of UL498B: Receptacles with integral switching means.
  • Binding button on face also serves as a manual override.
  • Simple, three-step binding process for wireless communication with RF Single Pack
  • Corrosion-resistant plated steel strap locked into face and back body to resist pulling away from face/body assembly.
  • .032 inch think, brass, triple-wipe power contacts for lasting retention.
  • LED Indicator Light on the receptacle guides binding process and indicated power to the receptacle.
  • Permanently molded face offers clear identification of controlled receptacle for end users.
