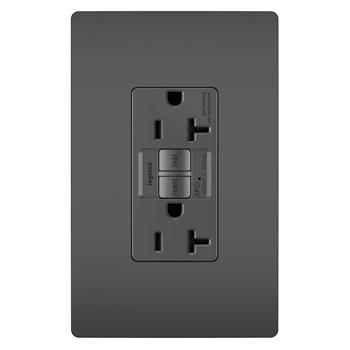

Product image for Pass & Seymour AF-20TRBK 20 Amp 125 VAC NEMA 5-20R Black Thermoplastic Face Tamper-Resistant Duplex AFCI Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour AF-20TRBK 20 Amp 125 VAC NEMA 5-20R Black Thermoplastic Face Tamper-Resistant Duplex AFCI Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # AF20TRBK | North Coast Part # 1268044
$58.33/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Pass & Seymour® Arc Fault Circuit Interrupter (AFCI) Receptacles are the latest innovation in electrical safety technology, and a Code-approved alternative to AFCI breakers. AFCI receptacles protect against electrical fires by detecting arc faults and de-energizing the circuit. radiant® Screwless Wall Plate not included.For detailed AFCI receptacle information, visit our AFCI Headquarters.Visit NEMA's website for more information on all things AFCI.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Connection Type
Screw Terminal
Material
Plastic
Mounting Type
Flush
NEMA
5-20R
Style
AFCI Outlet
Type
Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Legrand

General Product Info

12-Digit UPC
785007029635
Color
Black
Finish
Gloss
GTiN
00785007029635
Product UPC
78500702963

Certifications and Compliance

Country of Origin
China
Features
  • Part of the radiant® collection of wiring devices, wall plates, and home systems.
  • FSUL Listed (Federal Specification WC596)
  • Feed-through protection.
  • Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space.
  • High-impact-resistant, thermoplastic construction for superior strength and durability.
  • Auto-ground clip assures a positive ground to metal box.
  • Ground terminal back-wire for fast installation.
  • Tamper-Resistant automatic shutter system prevents children from inserting objects such as hairpins or keys.
  • Indicator Light
  • Patented SafeLock® Protection if critical components are damaged and arc fault protection is lost, power to the receptacle is disconnected.
  • Prevents Line-Load miswire no power to the face or downstream if wired incorrectly.
  • Black shutters essentially disappear into the background for an invisible effect preferred by end users.
  • Installed in the living space at the point of use so homeowners can see the indicator light, and perform TEST and RESET locally. No confusing trips to the breaker box.
  • Less confusion for the homeowner and therefore, fewer callbacks for the contractor.
  • AFCI Receptacles fit any wall box, reducing the amount of inventory you need to carry. Unlike circuit breakers, AFCI Receptacles dont have to match the brand of the breaker box.
  • An AFCI Receptacle can be installed in a wall box as a cost effective alternative when a breaker box is full or there is no matching AFCI Receptacle for a brand of breaker box.
Eco-Benefit Information
  • RoHS Compliant
