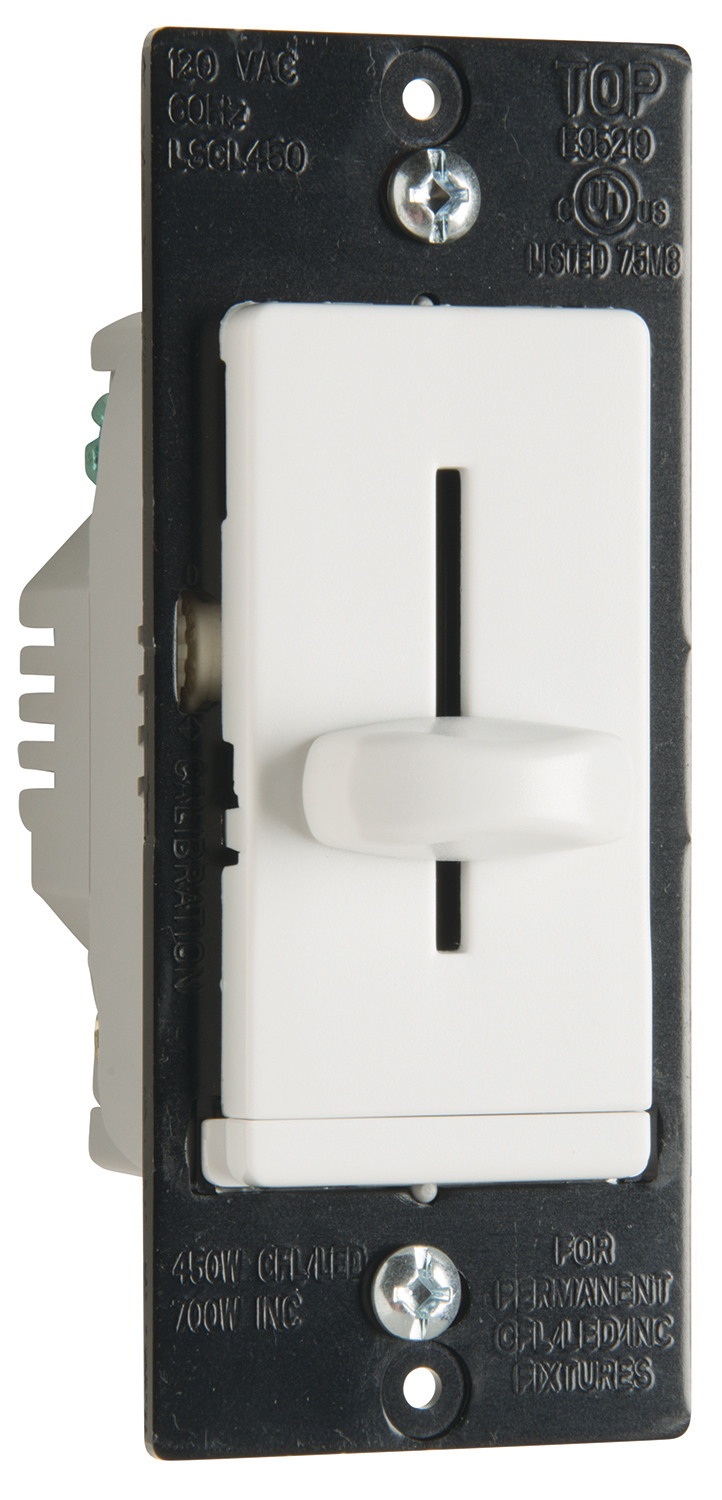

LS INC/CFL/LED NON-PRESET DIMMER IV

Manufacturer: Legrand / Pass & Seymour | Catalog # LSCL450I | North Coast Part # 1268106
$49.26/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet Brochure Installation Instructions
Works with select dimmable CFL/LED or incandescent lighting loads and features a sleek, sculpted ergonomic design for smooth, easy operation and precise control.

Technical Information

Actuator
Slide
Applications
Residential
Enclosure
Thermoplastic
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
Ambient Temperature: 0 and 40C
Size
2.85 L x 1.44 W x 4.87 H In
TC Connection
Screw Terminals
Type
Dimmer
Voltage
120 Volt
Wattage
450 Watt

Manufacturer Information

Family Brand Name
Legrand
Sub Brand
Pass & Seymour

General Product Info

Environmental Conditions
0 to 95 PCT
GTiN
00785007040548
Product UPC
78500704054

Certifications and Compliance

Country of Origin
China
  • Patented Snap-In Light Module (sold separately) transforms the dimmer into an illuminated dimmer.
  • Tough, impact-resistant thermoplastic housing makes it a perfect choice for new home construction. Matching, unbreakable TradeMaster wall plates available for all models.
  • No dirt-catching crevices.
  • Preset ON/OFF switch automatically returns controlled lights to preset level without re-adjusting dimmer setting.
  • Superior heat management.
  • Works with dimmable CFL/LED or Incandescent lighting loads at 450W CFL/LED & 700W Incandescent
  • Built-in electromagnetic and radio-frequency interference protection.
  • CFL/LED dimmable bulb compatible (except for 0-10V LED drivers).
  • Exclusive, screw-pressure-plate back wire terminals save time, space and money. Designed for 12 and 14 gauge wire, stranded or solid. No-wire-lead design eliminates wire nuts.
  • Rating: 450W LED & CFL: 700W Incandescent: 120VAC 60Hz.
