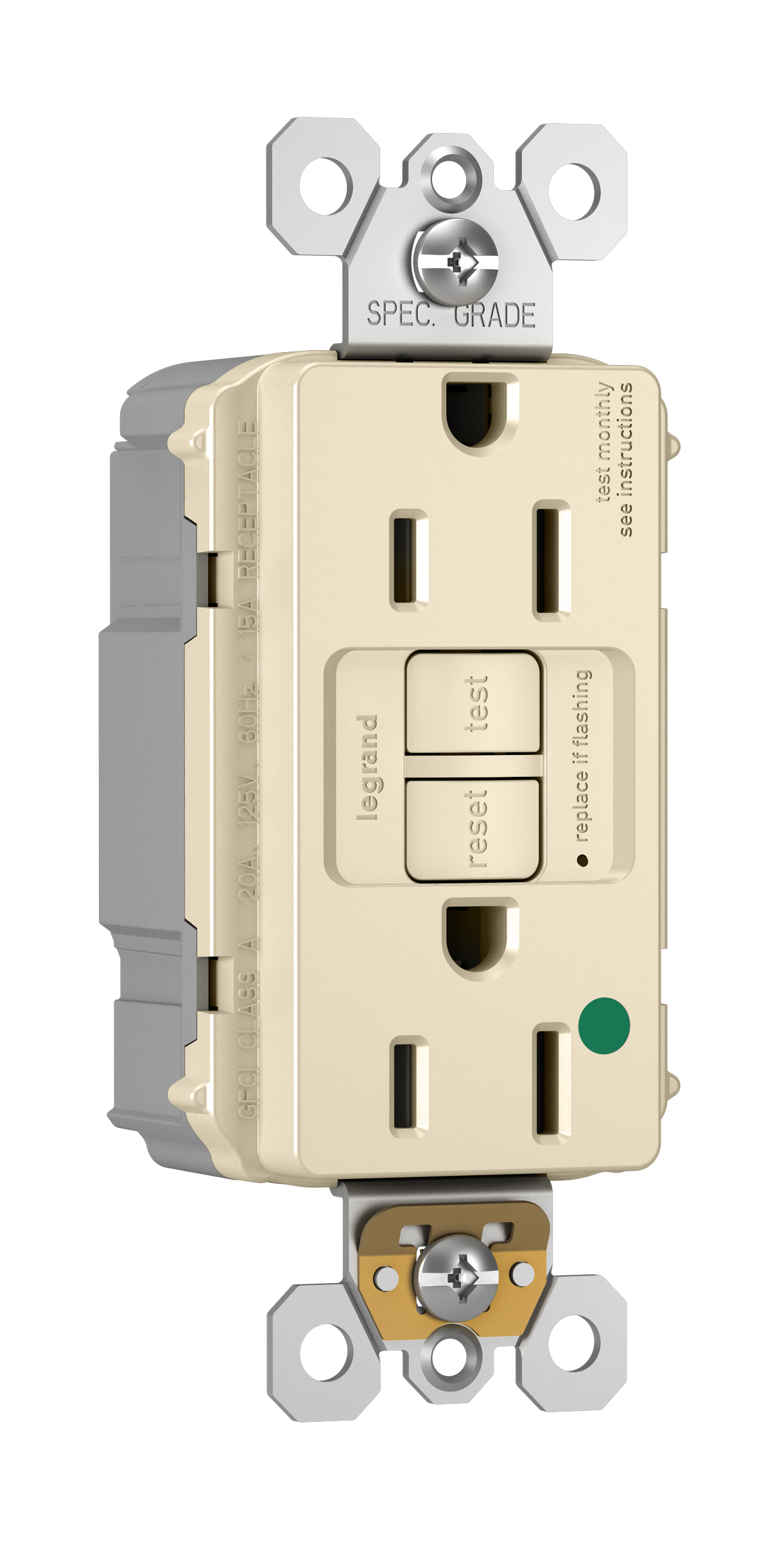

Product image for P&S PT1597HGLA SELF TEST PLUGTAIL G
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

P&S PT1597HGLA SELF TEST PLUGTAIL G

Manufacturer: Legrand / Pass & Seymour | Catalog # PT1597HGLA | North Coast Part # 1268253
$120.01 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Installation / Instruction Manual
PlugTail® Hospital-Grade 15A Self-Test GFCI Receptacle

Technical Information

Actuator
Control Circuit
Amperage
15 Amp
Applications
For Commercial, Residential Applications
Connection Type
Built-In
Frequency
60 Hz
Grade
Hospital
Grounding
Grounding
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplastic
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Hospital Grade
TC Connection
Built-in Connector
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Self-Test
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007047806
Color
Almond
Environmental Conditions
95% Relative Humidity
GTiN
00785007047806
Product UPC
78500704780

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Conducts an automatic test every three seconds, ensuring its always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
  • It also has our proven SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • High-impact-resistant thermoplastic construction with tri-drive terminal screws.
  • Trip indicator light (red LED).
  • Feed-through wiring configuration allows GFCI to protect downstream receptacles.
  • Faster, more reliable installation.
Certifications
  • cULus Listed
